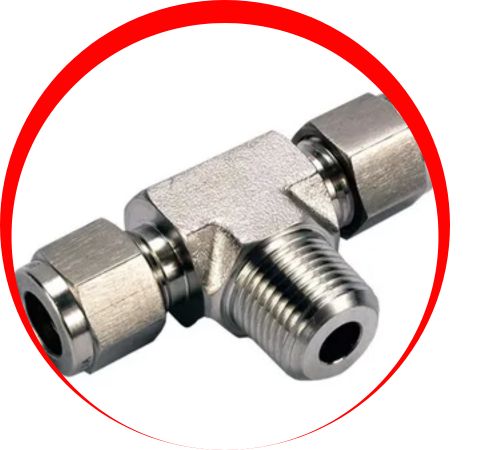

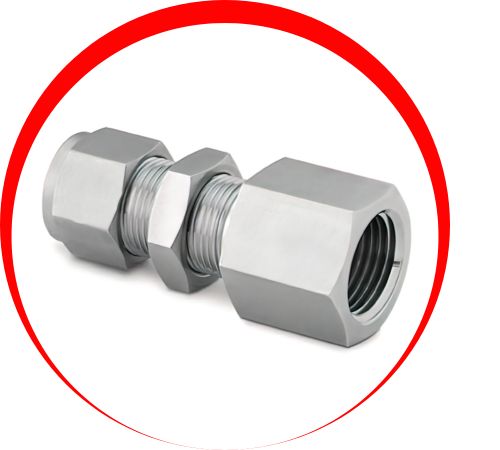

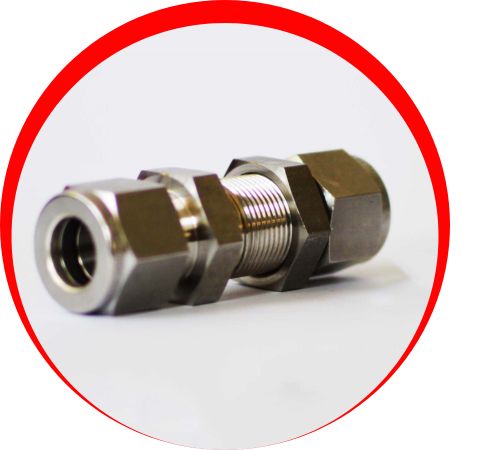

Elvis Nickel Alloys, a reputable manufacturer and supplier located in Houston, USA, specializes in high-quality Titanium Grade 2 Tube Fittings. These fittings are celebrated for their outstanding corrosion resistance, moderate strength, and excellent formability. Crafted from commercially pure titanium, they’re perfect for applications where a strong yet lightweight solution is crucial, along with chemical resistance and longevity. You can find them in various types, including male/female connectors, bulkhead unions, elbows, and tees, all adhering to international standards like ASTM B348, ASTM B363, and ASME SB-861. Industries such as chemical processing, marine, pharmaceutical, and desalination rely heavily on Titanium Grade 2 tube fittings.
Titanium Grade 2 Tube Fittings consist of more than 99.2% titanium, with small amounts of iron, oxygen, carbon, nitrogen, and hydrogen. This grade is known for its impressive corrosion resistance in both oxidizing and mildly reducing environments, including seawater and acidic solutions. It boasts a tensile strength of around 345 MPa, a yield strength of about 275 MPa, and an elongation of up to 20%. Non-magnetic and lightweight, Titanium Grade 2 maintains its strength even at high and cryogenic temperatures, making it an excellent choice for critical fluid handling systems.
| Specifications | ASTM B366 / ASME SB366 |
|---|---|
| Size | 1/16 in. to 2 in. & 2mm to 50 mm. |
| Dimensional Range | 1/16 to 2 inches (imperial); 2 to 50 mm (metric) |
| Working Pressures | Upto 2000 to 6000 PSI |
| Thread Type | NPT – ASME B1.20.1, SAE AS71051 | ISO/BSP Parallel – ISO 228 | ISO/BSP Tapered – ISO 7, BS EN 10226-1 | SAE (Unified) – ASME B1.1 |
| End Connections | NPT, ISO/BP, SAE/MS, AN, weld ends, port connectors, sanitary flanges, tube adapters |

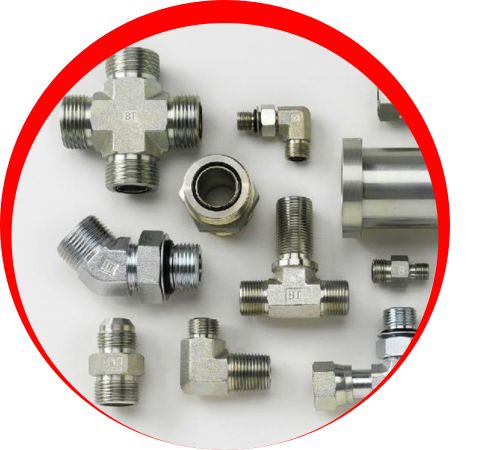

| Types | Tube to Union, Tube to Male, Tube to Female, Instrument Pipe Fittings, Accessories |
| Max Working Pressure | 8MPa | 1200psi Depending on The Tubing Material |
| Working Temperature | -40°C—250°C | -40°F—482°F Depending on The Tubing Material |
| Configurations | Straights, elbows, tees, crosses, caps, plugs, nuts and ferrules Chromatograph and Column End |
| Tube Fitting uses & application |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 2 Tube Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Grade 2 Tube Fittings are extensively utilized in sectors that require resistance to corrosive chemicals and seawater. In the chemical processing field, they’re used for transferring acidic and chlorinated fluids. In marine and offshore engineering, these fittings ensure reliable performance in seawater cooling systems, ballast systems, and piping networks. The pharmaceutical and biotech industries favor them for cleanroom piping due to their non-toxic and non-reactive properties. In desalination plants, they withstand harsh brine and saline conditions. Their durability and low-maintenance nature make them perfect for environments that demand high purity and reliability.
