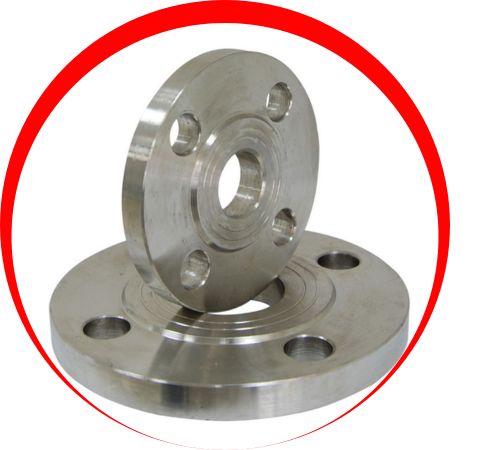

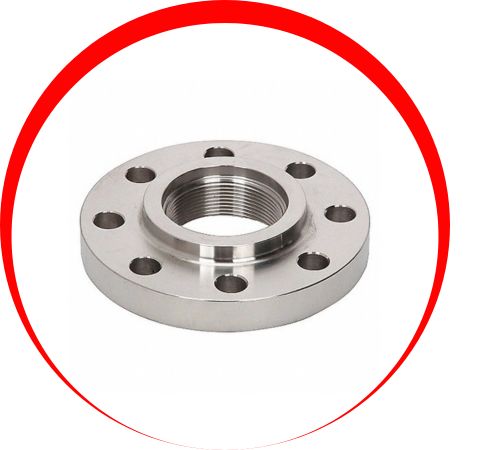

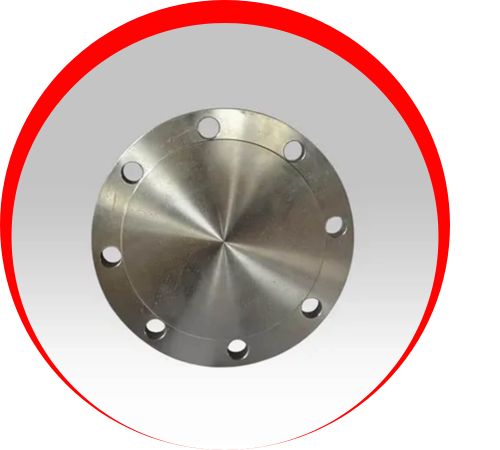

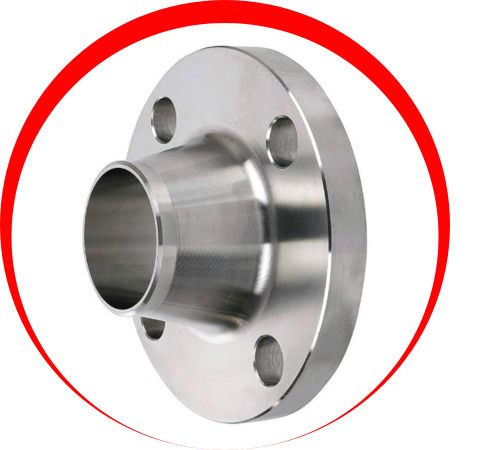

Elvis Nickel Alloys, a top-notch manufacturer and supplier located in Houston, USA, specializes in high-strength Titanium Grade 5 Flanges (Ti-6Al-4V). These flanges are celebrated for their outstanding mechanical properties and impressive corrosion resistance. Crafted from a blend of 6% aluminum and 4% vanadium alloyed titanium, they’re perfect for high-performance applications that demand durability, a lightweight design, and resilience in extreme conditions. You can find them in various types, including weld neck, blind, slip-on, socket weld, and lap joint, all adhering to international standards like ASTM B381, ASME SB381, and DIN/EN norms. Grade 5 titanium flanges are extensively utilized across industries such as aerospace, marine, chemical, and power generation.
Titanium Grade 5 Flanges consist of about 90% titanium, along with 6% aluminum and 4% vanadium, which together create a remarkable blend of strength, heat resistance, and corrosion protection. They boast a tensile strength of roughly 895 MPa, a yield strength of 828 MPa, and an elongation of around 10–15%. This grade of titanium maintains its properties even at elevated temperatures (up to 400°C) and is significantly stronger than commercially pure titanium while remaining lightweight. Its exceptional fatigue strength, toughness, and ability to withstand seawater, acids, and oxidizing environments make it ideal for demanding applications.
| Specifications | : | ASTM B381 / ASME SB381 |
| Size | : | 1/2″NB TO 60″NB |
| Standards | : | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | : | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
| Standard | : | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Grade 5 Flanges in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Grade 5 Flanges are commonly found in applications that require high strength, low weight, and excellent corrosion resistance. In the aerospace sector, they’re used in airframes, jet engines, and hydraulic systems. In marine and offshore settings, these flanges excel in seawater systems, desalination plants, and subsea equipment. The chemical processing industry relies on them for connecting pipelines that transport aggressive chemicals, acids, and chlorides. Power generation facilities utilize them in heat exchangers and pressure vessels, while the medical field incorporates them into surgical equipment and implants due to their biocompatibility and strength.
