Elvis Nickel Alloys, a top-notch manufacturer and supplier located in Houston, USA, specializes in high-quality Titanium Grade 2 Tubing. This tubing is celebrated for its remarkable corrosion resistance, impressive ductility, and balanced strength. As a commercially pure titanium product, Grade 2 tubing is perfect for applications that demand a long service life in tough environments. Offered in both seamless and welded options, these tubes comply with international standards such as ASTM B338, ASTM B861, and ASME SB338. Thanks to its excellent weldability and formability, Titanium Grade 2 tubing finds extensive use in sectors like chemical processing, marine, desalination, pharmaceuticals, and aerospace.
Titanium Grade 2 Tubing boasts over 99.2% pure titanium, along with trace amounts of elements like iron, oxygen, carbon, nitrogen, and hydrogen. It delivers a tensile strength of around 345 MPa, a yield strength of about 275 MPa, and an impressive elongation of up to 20%. This tubing is lightweight, non-magnetic, and performs well across a broad temperature range, from cryogenic to elevated temperatures. Renowned for its outstanding corrosion resistance in seawater, chlorides, and acidic environments, Titanium Grade 2 is perfect for systems that face harsh chemical or saline conditions while keeping its structural integrity intact.
| Specifications | ASTM B338 |
|---|---|
| ASTM B338 Grade 2 Tubes Size | 15 NB to 150 NB IN |
| Cp Grade 2 Tubing Wall Thickness | .035″ -.095′, (special wall thicknesses available) |
| Specialized in | Large Diameter Size |

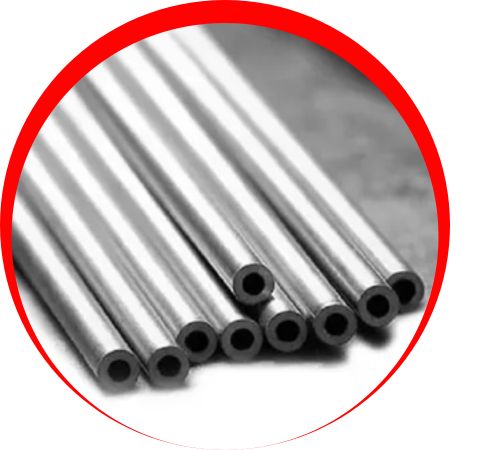

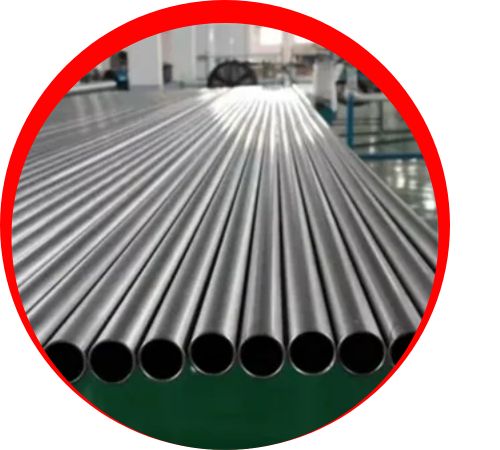

| ASME SB 338 Gr 2 Tubing Type | Seamless / ERW / Welded / Fabricated / Hollow |
| Ti Cp Grade 2 Tubes Schedule | SCH5, SCH10, SCH40, STD, SCH80, SCH160 |
| ASME SB 338 Grade Tubes Condition | Hot-Finished, Annealed, Cold-Drawn, Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF |

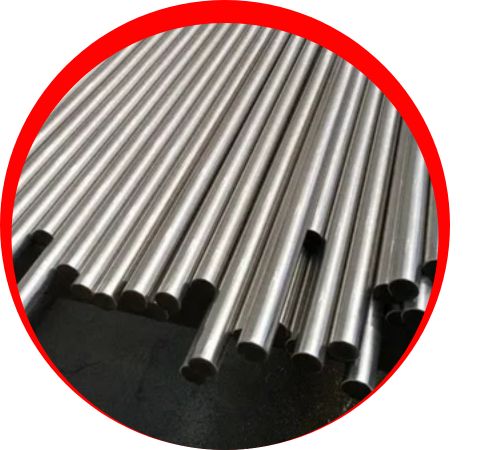

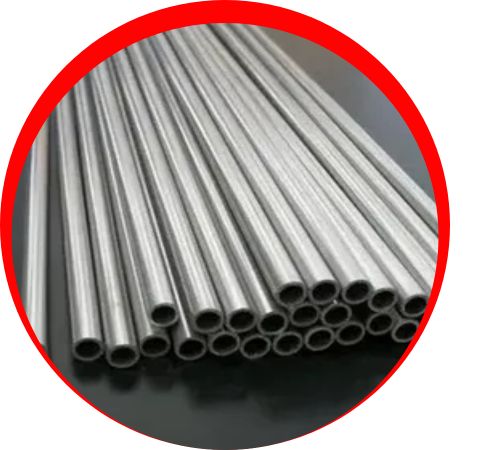

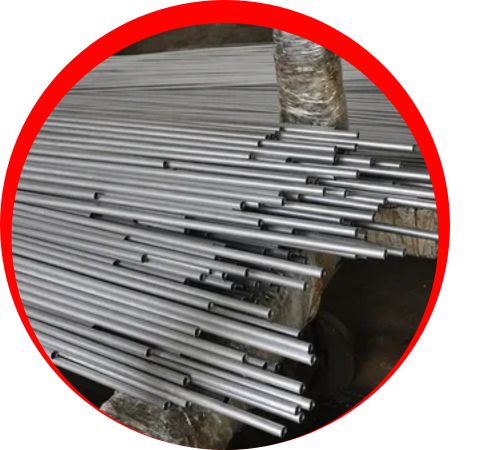

| Titanium Grade 2 Tubes Form | Coiled, Condenser, Straight, Heat-Exchanger, Capillary, U-Tube, Boiler, Square, Rectangular, Round, Hydraulic |
| SB 348 Gr 2 Tubes Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded. |
| Marking | All ASTM B338 Gr2 Titanium Pipes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.) |
| Material Test Certificates (MTC) | Material Test Certificates (MTC) as per EN 10204 3.1 and EN 10204 3.2 |
| Element | Titanium | Nitrogen | Carbon | Hydrogen | Iron | Oxygen | Residuals (each) | Residuals (total) |
|---|---|---|---|---|---|---|---|---|
| % | Balance | 0.03 max | 0.08 max | 0.015 max | 0.30 max | 0.25 max | 0.1 max | 0.4 max |
| 0.2% Proof Stress | Tensile Strength | Elongation | |
| MPa | MPa | % | |
| Annealed | 275-450 | 345 | 20 |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Titanium Gr 2 Tubing in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Titanium Grade 2 tubing is widely used in industries requiring high corrosion resistance and strength, such as aerospace, chemical processing, and marine applications. It is ideal for heat exchangers, condensers, and chemical transport due to its excellent formability and weldability. Additionally, Titanium Gr 2 tubing is used in medical devices, desalination plants, and power generation equipment, offering long-term durability in challenging environments. Its biocompatibility makes it suitable for surgical implants and other medical applications.
