Elvis Nickel Alloys, a top-notch supplier and manufacturer located in Houston, USA, specializes in high-performance Nitronic Sheets and Plates. These materials are celebrated for their remarkable blend of strength, corrosion resistance, and wear resistance. Nitronic alloys, including Nitronic 50 (UNS S20910) and Nitronic 60 (UNS S21800), are nitrogen-strengthened austenitic stainless steels that excel in both moderate and highly corrosive environments. You can find these sheets and plates in a variety of thicknesses and finishes, all adhering to international standards like ASTM A240 and ASME SA240. Perfect for marine, chemical, and structural applications, Nitronic products promise outstanding reliability and durability even in tough conditions.
Nitronic sheets and plates are primarily composed of stainless steel alloys, usually high in chromium, nickel and manganese to enhance their corrosion resistance, strength and wear resistance These materials have a strength a high tensile strength, good fatigue, shock resistance and excellent resistance to oxidation and corrosion Nitronic alloys exhibit mechanical properties especially practical in applications requiring severe resistance to wear, abrasion and pitting, and making them excellent in the marine, chemical, aerospace industries They provide long-term care for long-term performance in harsh environments.
| Standard : | UNS S21906 | AMS 5656 | MIL-T-9821 | ASTM A276 | ASME SA276 UNS S21800 | Alloy 218 | ASME SA 193 | AMS 5848 | ASTM A 193 EN 1.3964 | ISO 15156-3 | NACE MR0175 | UNS S20910 | AMS 5764 | ASTM A193 | Werkstoff 1.3964 |
| Size : | 20mm x 1200 x 500 |

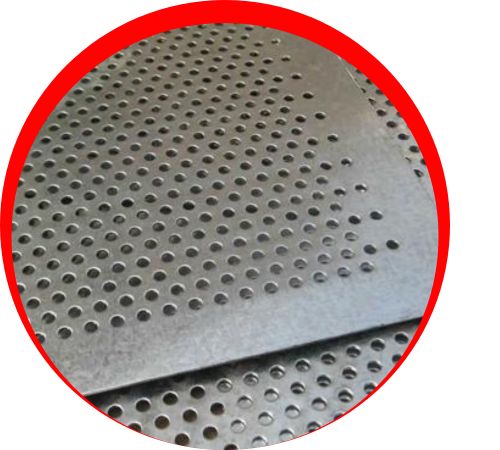

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |

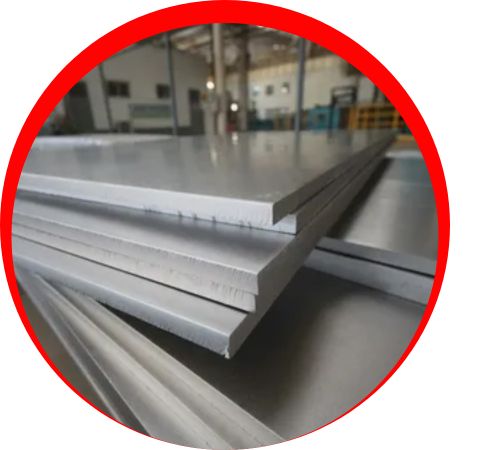

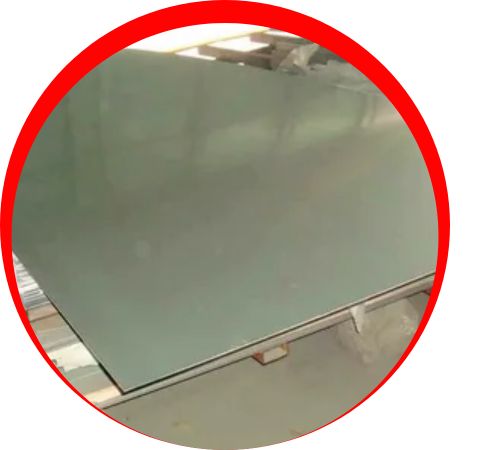

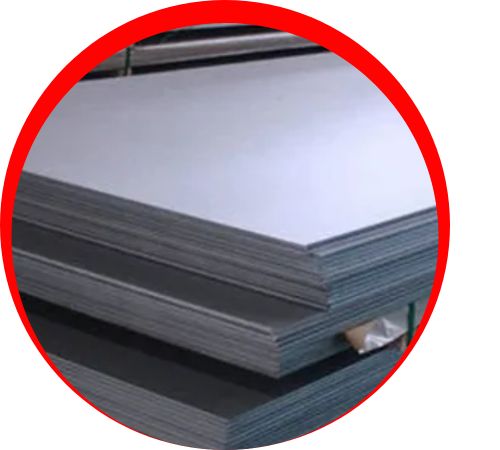

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Grade : | Nitronic 40 / 50 / 60 (UNS-S20910, S21800, S21900) |
| STANDARD | UNS | EN | ISO | NACE | AMS | ASTM | Werkstoff | other |
| Nitronic 40 | S21906 | – | – | – | 5656 | A276 | – | MIL-T-9821 |
| Nitronic 50 | S20910 | 1.3964 | 15156-3 | MR0175 | 5656 | A193 | 1.3964 | MIL-T-9821 |
| Nitronic 60 | S21800 | – | – | – | 5848 | A193 | 1.3964 | Alloy 218 |
| Weight% | C | P | Si | Ni | Fe | Mn | S | Cr | N | Mo | Cu |
| Nitronic 40 (21-6-9) | 0.04 max | 0.060 max | 1.00 max | 5.5-7.5 | Bal | 8-10 | 0.030 max | 19-21.5 | 0.15-0.40 | 0.75 max | 0.75 max |
| Alloy | Cross Section Size | Test Direction | Yield Strength 0.2% | Ultimate Tensile Strength | Elongation in 2″(%) | Reduction of Area % | Rockwell B Hardness | ||
| ksi | MPa | ksi | MPa | ||||||
| Nitronic 40 (21-6-9) | 6″ (152mm) sq | Longitudinal | 62 | 428 | 95 | 655 | 46 | 69 | |
| Nitronic 40 (21-6-9) | 6″ (152mm) sq | Transverse | 52 | 358 | 93 | 641 | 30 | 45 | |
| Nitronic 40 (21-6-9) | 4″ (102mm) sq | Longitudinal | 56 | 386 | 97 | 668 | 53 | 73 | |
| Nitronic 40 (21-6-9) | 1″ (25.4mm)sq | Longitudinal | 52 | 358 | 101 | 696 | 53 | 73 | 90 |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nitronic Sheet and Plates in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nitronic Sheets and Plates find their way into various industries, including marine, chemical processing, aerospace, pulp and paper, and pollution control. Nitronic 50’s combination of high strength and corrosion resistance makes it a go-to for seawater applications, pump shafts, valve components, and marine hardware. On the flip side, Nitronic 60 is the preferred choice for wear-resistant applications like bushings, bearings, and fasteners due to its outstanding galling resistance. These sheets and plates are also utilized in heat exchangers, nuclear components, and food processing equipment, ensuring a long service life.
