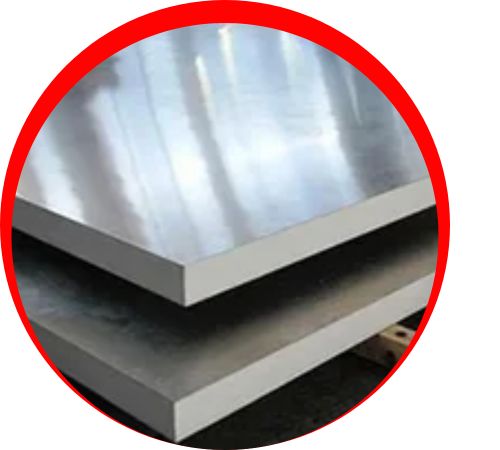

Elvis Nickel Alloys, a top-notch manufacturer and supplier based in Houston, USA, specializes in high-purity Niobium Sheets and Plates designed for tough applications that demand outstanding corrosion resistance, high thermal stability, and biocompatibility. Niobium, a refractory metal with a melting point of 2477°C (4491°F), retains its strength and formability even in extreme temperatures. These sheets and plates are crafted to meet strict specifications like ASTM B393, ensuring they are consistent, ductile, and of high surface quality. They find extensive use in aerospace, electronics, superconducting, and medical fields, making them perfect for environments that require exceptional structural integrity and chemical resistance.
Niobium Sheets and Plates are composed of a minimum of 99.5% pure Niobium, with trace elements including Tantalum (up to 0.1%), Titanium (up to 0.04%), and Zirconium (up to 0.02%). These materials exhibit exceptional mechanical properties, including a tensile strength of approximately 275 MPa and a yield strength of around 140 MPa. They offer excellent ductility with an elongation rate of 20-30%, and their high melting point of 2,468°C ensures outstanding thermal stability. Niobium Sheets and Plates are highly corrosion-resistant, particularly in acidic environments, making them ideal for aerospace, medical, and chemical processing applications that demand durability and reliability.
| Grade : | Nb1,NbZr,R04200 |
| Standard : | ASTM B393-05 |
| Purity : | 99.95% |

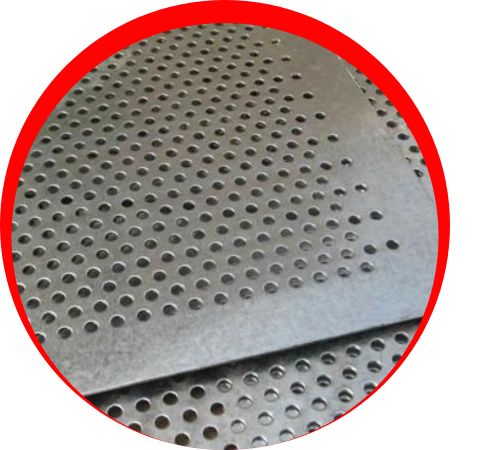

| Specialize sheets : | Shim, Perforated Sheet, B. Q. Profile. |
| Size: | Thick 0.1mm min.W680mm max. L3000mm max |

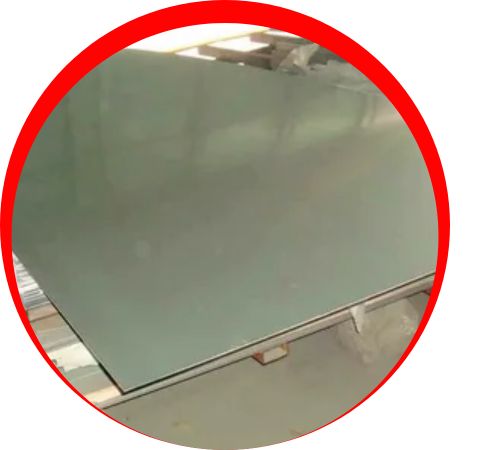

| Finish : | Cold rolled sheet (CR), 2D, Hot rolled plate (HR), 2B, BA NO(8), SATIN (Met with Plastic Coated) |
| Hardness : | Quarter Hard, Soft, Hard, Half Hard, Spring Hard etc. |
| Applications : | Semiconductor materials, vacuum coating, sintering trays and boats, special chemical applications. |
| STANDARD | UNS | Material No |
| Niobium | R04200 | – |
| Element | Type 1 (Reactor Grade Unalloyed Nb) R04200 | Type 2 (Commercial Grade Unalloyed Nb) R04210 | Type 3 (Reactor Grade Nb-1%Nb) R04251 | Type 4 (Commercial Grade Nb-1%Nb) R04261 |
| Max Weight % (Except Where Otherwise Specified) | ||||
| C | 0.01 | 0.01 | 0.01 | 0.01 |
| N | 0.01 | 0.01 | 0.01 | 0.01 |
| O | 0.015 | 0.025 | 0.015 | 0.025 |
| H | 0.0015 | 0.0015 | 0.0015 | 0.0015 |
| Zr | 0.02 | 0.02 | 0.8 – 1.2 | 0.8 – 1.2 |
| Ta | 0.1 | 0.3 | 0.1 | 0.5 |
| Fe | 0.005 | 0.01 | 0.005 | 0.01 |
| Si | 0.005 | 0.005 | 0.005 | 0.005 |
| W | 0.03 | 0.05 | 0.03 | 0.05 |
| Ni | 0.005 | 0.005 | 0.005 | 0.005 |
| Mo | 0.010 | 0.020 | 0.010 | 0.050 |
| Hf | 0.02 | 0.02 | 0.02 | 0.02 |
| Ti | 0.02 | 0.03 | 0.02 | 0.03 |
| Grade Chart | Tensile Ultimate Strength, Minimum,psi(MPa) | Yield Strength Minimum, psi (MPa) | Elongation in 1-inch | |
| 0.010 inch or Greater | Less Than 0.010 inch | |||
| Types 1 and 2 | 18 000 (125) | 10 500 (73) | 20 | 15 |
| Types 3 and 4 | 28 000 (195) | 18 000 (125) | 20 | 15 |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Niobium Sheet and Plates in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Niobium Sheets and Plates are extensively utilized in aerospace for parts like rocket engine nozzles, thermal shielding, and jet propulsion systems, thanks to their high melting point and resistance to oxidation. In the electronics sector, they play a crucial role in manufacturing capacitors, semiconductor components, and superconducting magnets. Medical uses include implantable devices, bone plates, and pacemaker components, all due to niobium’s excellent biocompatibility. Furthermore, niobium is used in chemical processing equipment such as heat exchangers, reactor linings, and anodes, thanks to its exceptional properties.
