Elvis Nickel Alloys provides precision-fabricated Nimonic 90 Bars, produced in Houston for critical industries such as aerospace, power generation, and automotive engineering. Nimonic 90 is a nickel-chromium-cobalt alloy with outstanding strength and oxidation resistance at elevated temperatures. Elvis Nickel Alloys offers these bars in diameters and lengths as specified by the customer, with close tolerance control and high-quality surface finishes. Suitable for applications with high heat and high stress, Nimonic 90 bars from Elvis Nickel Alloys adhere to international quality standards and undergoes heat treatment to achieve better creep resistance and durability when loaded in cyclic conditions.
Nimonic 90 Bars consist of a nickel base (approximately 57%) with chromium (18–21%), cobalt (15–20%), and trace elements such as titanium and aluminum for precipitation strengthening. The bars provide tensile strengths of up to 1100 MPa with superior fatigue, creep, and rupture resistance at temperatures to 950°C. The bars possess dimensional stability and withstand oxidation on prolonged exposure to high temperature. Nimonic 90 is solution–treated and precipitation–hardened to improve grain structure and mechanical stability for high-performance use.
| Standards : | – |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

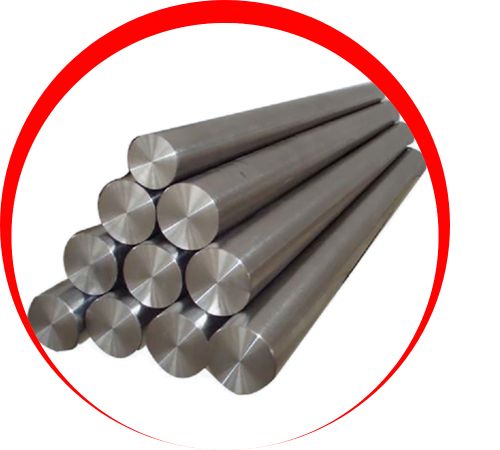

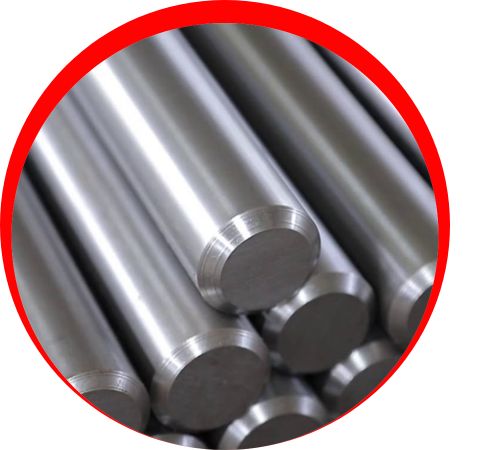

| Round bar size : | Diameter: 3-~800mm |

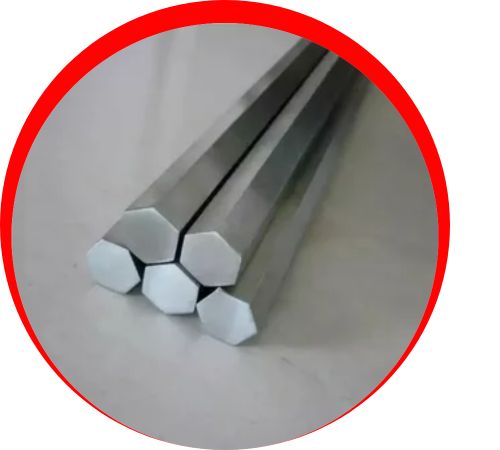

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

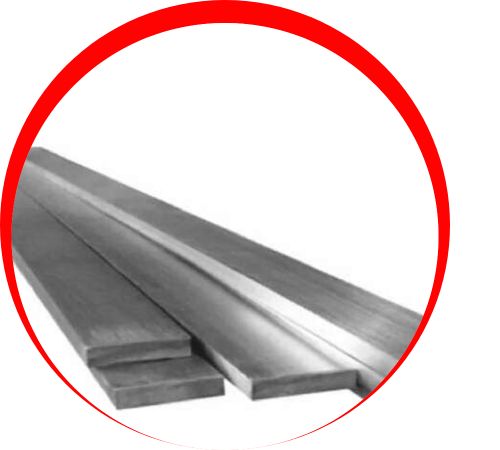

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | Ni | Cr | Co | Ti | Al | C | Si | Cu | Fe | Mn | B | S | Zr | Pb |
| Nimonic 90 | Bal | 18-21 | 15-21 | 2-3 | 1-2 | 0.2 max | 1.0 max | 0.2 max | 1.5 max | 1.0 max | 0.02 max | 0.015 max | 0.15 max | 0.0020 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic 90 Bar in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nimonic 90 Bars have extensive applications in turbine parts, exhaust systems, and high-performance engine components. Aerospace uses cover turbine blades, combustion chamber linings, and afterburner components. In power plants, they are applied in boiler components and turbine wheels where long-time high-temperature strength is critical. The automobile sector also employs Nimonic 90 in turbochargers and heat-resistant fasteners. Their oxidation resistance, thermal fatigue life, and high strength make them ideal for parts under mechanical load and heat cycling in harsh environments.
