Elvis Nickel Alloys is a major supplier and manufacturer of high-performance Nimonic 80A Bars in Houston, USA. Known for its strong creep resistance and high-temperature strength, Nimonic 80A is a nickel-chromium alloy with notable aluminum and titanium additions for precipitation hardening. At Elvis Nickel Alloys, we deliver precisely forged and heat-treated bars that meet aerospace and power generation standards. Our focus on quality, innovation, and customer satisfaction ensures reliable supply and technical support for every client. We address custom specifications, offering timely delivery and certification for all orders across domestic and international markets.
Nimonic 80A is made up of about 76% nickel, 19.5% chromium, 2.3% titanium, and 1.4% aluminum. The alloy provides great creep and oxidation resistance up to 815°C. It shows a tensile strength of up to 965 MPa and a yield strength of around 650 MPa after aging. Nimonic 80A is precipitation-hardened and offers high resistance to thermal fatigue. Its microstructure improves mechanical stability under extreme operating conditions. The bar keeps its strength under extended thermal exposure, making it highly suitable for turbine blades, combustion chambers, and high-stress structural components.
| Standards : | Nimonic 80A Rod, Bar : BS 3076 HR1, ASTM B 637, AECMA PrEn2188, AECMA PrEn2189, AECMA PrEn 2190, AECMA PrEn 2396, AECMA PrEn2397, AIR 9165-37 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

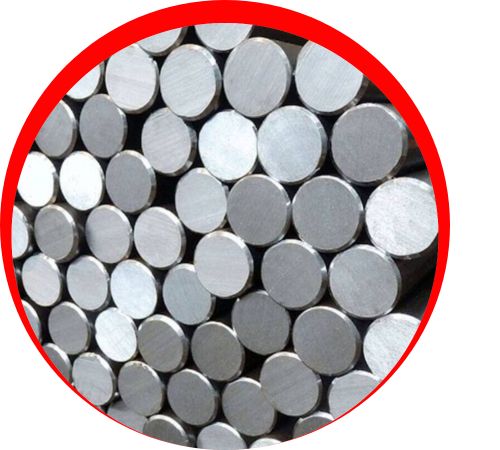

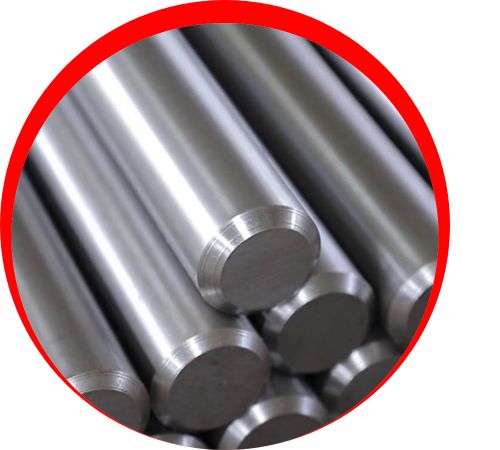

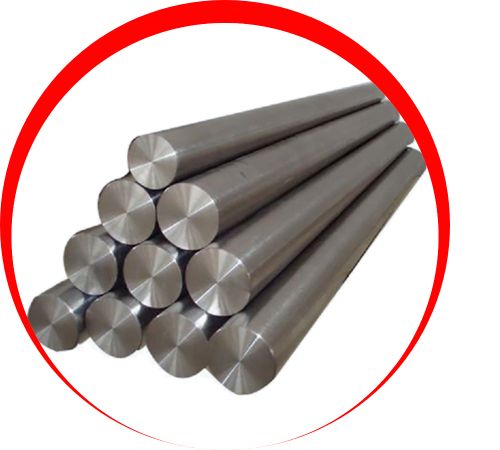

| Round bar size : | Diameter: 3-~800mm |

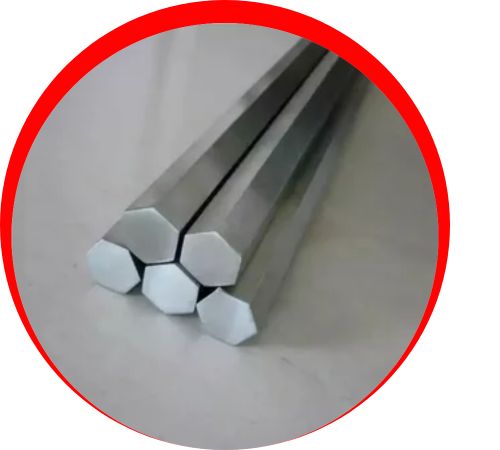

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |
| Square bar size : | 4 to 100mm |

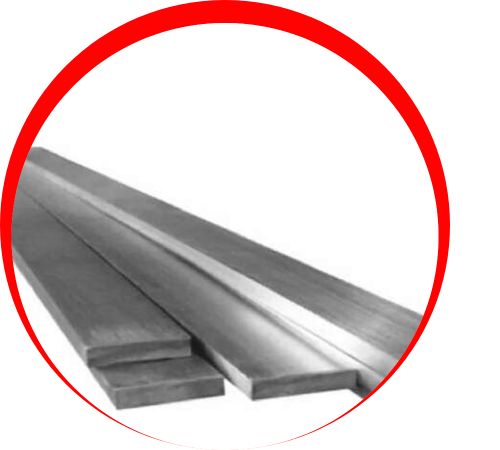

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | Al | B | C | Cr | Co | Cu | Fe | Mn | Ni | P | Si | S |
| Nimonic 80A | 1 – 1.8 | 0.008 max | 0.1 max | 18 – 21 | 0.2 max | 0.2 max | 3 max | 1 max | Balance | 0.045 max | 1 max | 0.015 max |
| Grade | Condition | Ultimate Tensile Strength MPA | Yield Strength MPA | Elongation on 4D (min) | Hardness min |
| Nimonic 80A | Solution Annealed & Precipatation Treated (aged) | 994 | 616 | 20 | 300 HV |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nimonic 80A Bar in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nimonic 80A Bars are routinely used in high-temperature situations such as gas turbine engines, turbocharger components, and aircraft exhaust systems. They are crucial in power plants for steam valves, nozzles, and moving parts subjected to high thermal stress. Nimonic 80A is also found in nuclear reactors and heat treatment equipment. Its resistance to oxidation and thermal creep makes it perfect for high-speed and high-load mechanical uses. The alloy is commonly used in both aerospace and automotive sectors where holding strength and fatigue resistance under cyclical heating are vital for operational performance and safety.
