Elvis Nickel Alloys is a renowned factory and supplier of Nickel Alloy 201 Forged Fittings in Houston, USA, which is known for providing high-quality corrosion-resistant solutions to various industries. The company possesses years of experience and a track record of quality commitment, and it provides a range of precision-engineered fittings that comply with international standards. Our Nickel Alloy 201 forged fittings are designed to endure harsh environments and are specifically suited for use in chemical processing, marine, and power generation applications. Elvis Nickel Alloys is committed to delivering dependable, affordable products supported by excellent service and timely delivery throughout the United States and globally.
Nickel Alloy 201 Forged Fittings consist mainly of nickel (≥99.5%), with small amounts of carbon (≤0.02%), which improves thermal and corrosion resistance. The other trace impurities are iron, copper, and manganese. The alloy has very good mechanical properties, including a tensile strength of about 403 MPa, yield strength of around 103 MPa, and elongation of 45%. It has low carbon content to deliver excellent performance in high-temperature and caustic applications. Nickel 201 has very good ductility and weldability, which makes it ideal for precision-forged fittings employed in severe industrial applications where strength and reliability are important.
| Dimension Specification | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
|---|---|
| Thread | NPT, BSPT, BSPP |
| Type | DN15-DN1200 |
| End | Threaded, Welding, JIC |
| Pressure Rating | Threaded end-2000lb/ 3000lb/ 6000lbs Pipe Fittings Socket-weld end-3000/ 6000/ 9000lbs Pipe Fittings |
| Connection | Welding |
| Manufacturing process | Push, Press, Forge, Cast, etc. |
| Test Certificates | EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc |

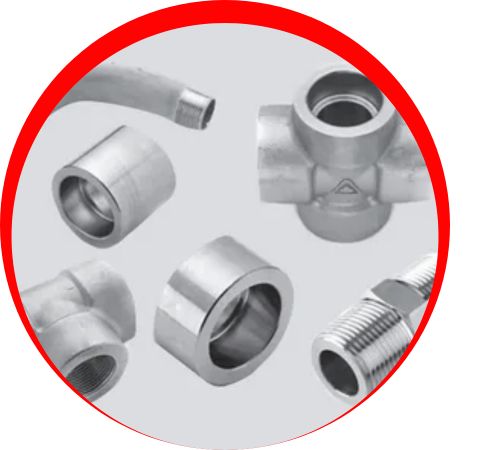

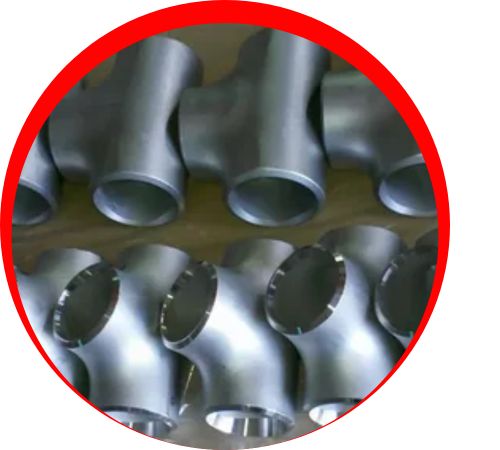

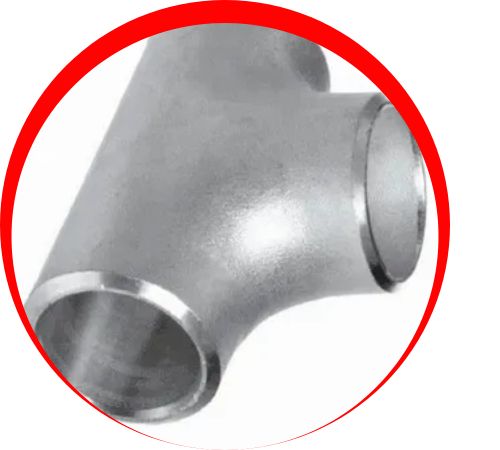

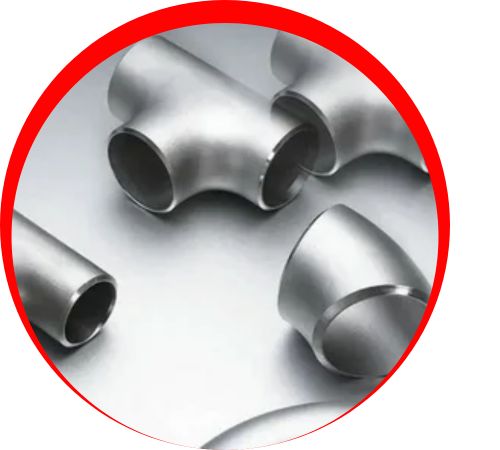

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Crosses, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Union, Nipples, Couplings, Plugs Fittings |
| Application |
|
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Nickel | 0.02 max | 0.35 max | 0.35 max | 0.01 max | 0.25 max | 0.40 max | 99.0 min |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.9 g/cm3 | 1446 °C (2635 °F) | Psi – 21500 , MPa – 148 | Psi – 67000 , MPa – 462 | 45 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Nickel Alloy 201 Forged Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Nickel Alloy 201 Forged Fittings find extensive application in those industries that require high corrosion resistance and mechanical strength at elevated temperature conditions. The fittings are widely used in chemical processing, marine engineering, power generation plants, and food processing. Since they contain low carbon, they find ideal application in caustic alkali, neutral salts, and acids. They are also appropriate for aerospace and nuclear sector heat exchangers, pressure vessels, and piping systems. Exceptional resistance to stress corrosion cracking and graphitization makes the alloy most suitable for critical services that need long-term reliability and structural integrity.
