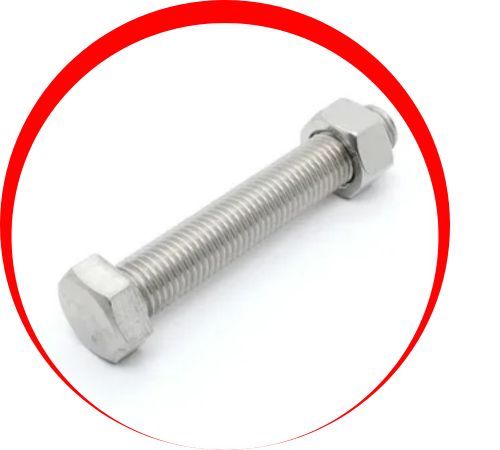

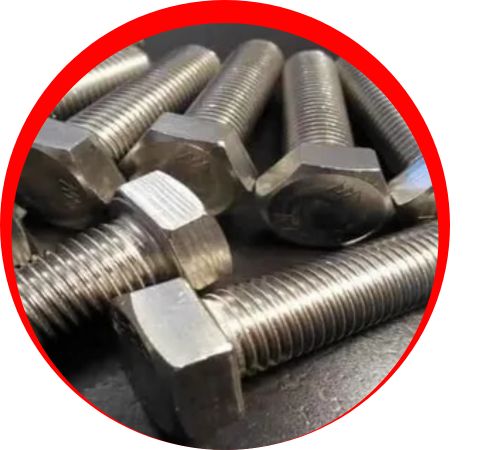

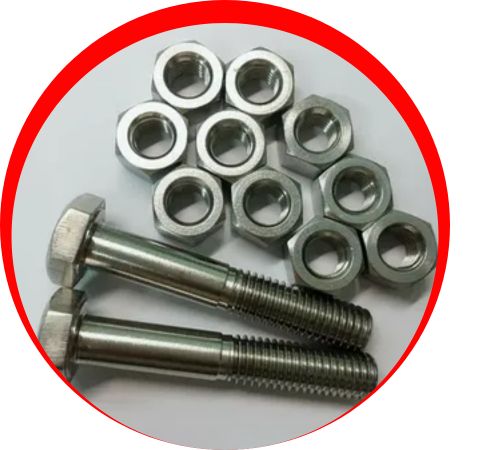

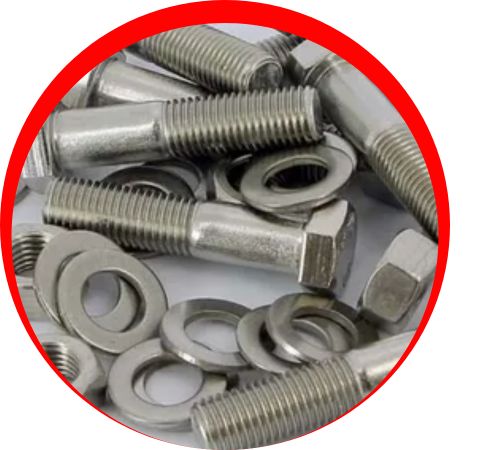

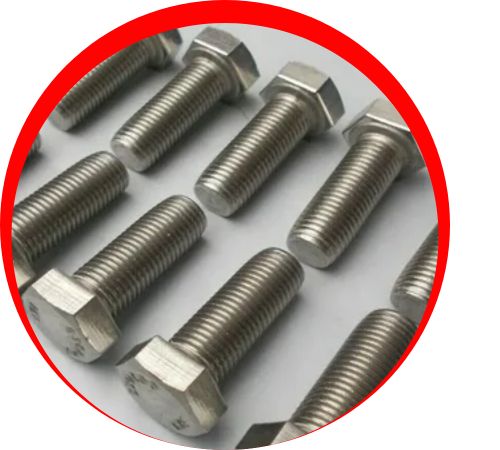

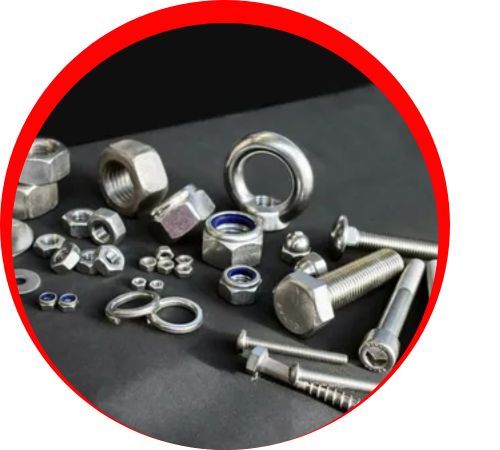

In Houston, Texas, Elvis Nickel Alloys is a top producer and supplier of Monel Stud Bolts, providing strong, corrosion-resistant fastening solutions for demanding industrial settings. Our stud bolts are designed to be long-lasting, high-performing, and resistant to corrosive substances and extreme temperatures. They are made from premium Monel 400 and Monel K500 alloys. These bolts are perfect for fastening flanged joints in pipelines, pressure vessels, and equipment that is subjected to severe environments. Elvis Nickel Alloys produces precisely engineered Monel stud bolts that satisfy international standards and the various demands of international industries, supported by technical know-how and stringent quality control.
The Monel 400 or Monel K500 alloys used to make Monel Stud Bolts are mainly composed of nickel (≈63%) and copper (28–34%), with trace amounts of iron, manganese, carbon, and silicon. While Monel K500, which is strengthened by age hardening with titanium and aluminium, achieves even higher mechanical performance, Monel 400 offers tensile strength of 480–620 MPa and yield strength of 170–345 MPa. Excellent resistance to seawater, acids, alkalis, and stress corrosion cracking is offered by both varieties. These stud bolts are appropriate for demanding and corrosive environments because they retain their strength and ductility over a wide temperature range.
| Grade | Monel Bolts |
| Specifications | ASTM F467 /ASME SF467 |
| Dimension | ASTM, IS, BS and all International Standards |
| Length | 3mm to 200mm |
| Size | M02 to M33 | Custom Sizes |
| Types | Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Bronze Hex Studs, Threaded Studs etc |
| Element | Content (%) |
| Nickel, Ni | 63.00 min |
| Silicon, Si | 0.5 max |
| Carbon, C | 0.3 max |
| Sulphur, S | 0.024 |
| Copper, Cu | 28-34 |
| Iron, Fe | 2.5 max |
| Manganese, Mn | 2 max |
| Density | Melting Point | Yield Strength (0.2%Offset) | Tensile Strength | Elongation |
| 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 35,000 , MPa – 240 | Psi – 80,000 , MPa – 550 | 40 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel Stud Bolts in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Industries including marine, offshore oil and gas, chemical processing, power generation, and aerospace all make extensive use of Monel Stud Bolts. In settings subjected to seawater, acidic chemicals, and high pressures or temperatures, these bolts are perfect for securing flanges, valves, and fittings. They are frequently found in pipeline assemblies, pump systems, pressure vessels, condensers, and heat exchangers. Because of their non-magnetic characteristics and ability to withstand oxidation and pitting, monel stud bolts are highly prized for their suitability for both above-ground and submerged applications. Secure, maintenance-free connections in vital systems are guaranteed by their lengthy service life and mechanical dependability.
