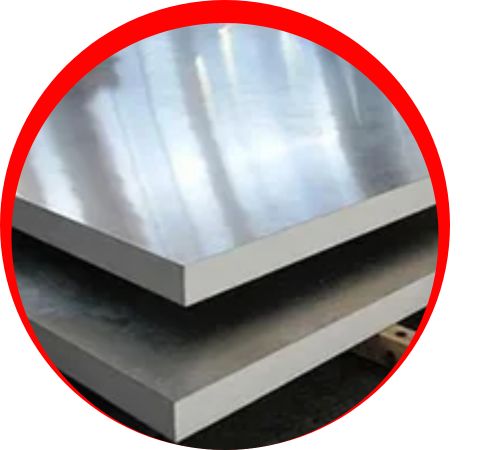

Based in Houston, USA, Elvis Nickel Alloys is a leading producer and supplier of Monel Sheet and Plates, offering high-performance nickel-copper alloy products for vital industrial uses. Our Monel sheets and plates come in grades 400 and K500, which are distinguished by their exceptional resistance to mechanical stress, high temperatures, and corrosion. These products are perfect for the energy, chemical, marine, and aerospace industries and are made to meet international industry standards. Elvis Nickel Alloys is a reputable supplier of sturdy and dependable Monel sheet and plate solutions thanks to their meticulous manufacturing, stringent quality control, and timely delivery.
Monel 400 or Monel K500 alloys, which contain roughly 63% nickel and 28–34% copper with trace amounts of iron, manganese, carbon, and silicon, are used to make Monel Sheets and Plates. Monel 400 has outstanding ductility, a yield strength of 170–345 MPa, and a tensile strength of 480–620 MPa. For increased strength and hardness, Monel K500 is age-hardened using titanium and aluminium. Both grades retain their mechanical integrity under heat stress and show exceptional corrosion resistance, particularly in chemical and saltwater environments. Because of these characteristics, Monel sheets and plates can be used in corrosive and heavy-duty applications.
Specifications :ASTM B127, ASME SB127, AMS 4544, QQ-N-281, DIN 17750, BS 3072NA1, BS 3076NA13
Standards : ASTM, ASME and API
Size : 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm
Thickness : 0.1mm to 12 mm Thk
Length : 12500 mm
Form : Coils, Foils, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) & Angle, Channel, Tray Etc.
Hardness : Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Plate, Sheet, and Strip : BS3072NA18 (Sheet and Plate), BS3073NA18 (Strip), QQ-N-286 (Plate, Sheet and Strip), DIN 17750 (Plate, Sheet and Strip), ISO 6208 (Plate, Sheet and Strip)
Grade : Monel 400 (UNS No. N04400), Monel 500 (UNS No. N05500)
| Grade | Ni | Fe | C | Mn | Si | Cu | Al | S |
|---|---|---|---|---|---|---|---|---|
| Monel 400 | 63.0 min | 1.0 – 2.5 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.50 max | 0.02 max |
| Monel K500 | 63.0 min | 05 – 2 | 0.25 max | 1.5 max | 0.5 max | 27.0 – 33.0 | 2.3 – 3.15 | 0.010 max |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel Sheet and Plates in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Many different industries use monel sheets and plates because of their high strength, resistance to corrosion, and durability. Because of their exceptional resistance to saltwater, they are used in hulls, decks, and seawater-handling systems in marine engineering. They are utilised for heat exchanger shells, storage tanks, and reactors exposed to acidic or alkaline media in chemical processing. Monel plates are also used for cladding, pressure-retaining parts, and structural elements in the oil and gas, power generation, and aerospace industries. They are perfect for demanding, high-performance settings because they are non-magnetic and resistant to pitting and stress corrosion.
