Based in Houston, USA, Elvis Nickel Alloys is a respectable producer and supplier of Monel K500 Bars, providing premium-grade nickel-copper alloy bars for high-performance applications. Our Monel K500 bars are renowned for their exceptional performance in harsh conditions, exceptional mechanical strength, and resistance to corrosion. These precision-engineered bars, which come in a variety of sizes, shapes, and finishes, are used in the chemical processing, oil and gas, marine, and aerospace industries. Elvis Nickel Alloys guarantees that our Monel K500 bars satisfy exacting industry standards and client-specific project requirements by committing to quality, customisation, and on-time delivery.
About 63% nickel and 27–33% copper make up Monel K500 bars, with 2.3–3.15% aluminium and 0.35–0.85% titanium added to allow for precipitation hardening. Compared to Monel 400, this alloy offers noticeably more mechanical strength. It offers outstanding toughness and ductility along with a yield strength of about 690 MPa and a tensile strength of 960–1100 MPa. In chemical and marine environments, Monel K500 bars also resist erosion, stress cracking, and corrosion. They are perfect for high-stress, high-performance industrial applications because they are non-magnetic and stable over a broad temperature range.
|

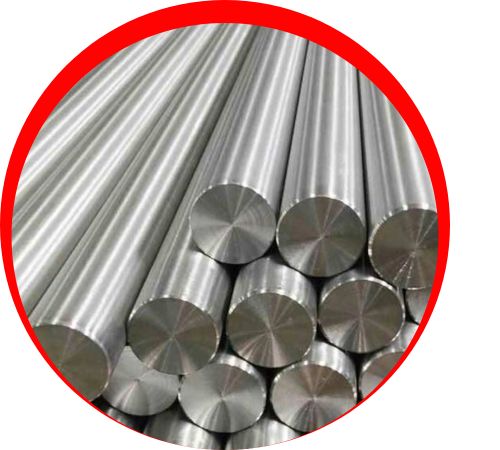

Monel K500 Round Bar Specifications |
||
| Specifications | : | ASTM B865 / ASTM SB865 |
| Dimensions | : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Size | : | 5 mm To 500 mm |
| Diameter | : | 0.1 mm to 100 mm |
| Length | : | 100 mm To 3000 mm Long & Above |
| Finish | : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Tolerance | : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |

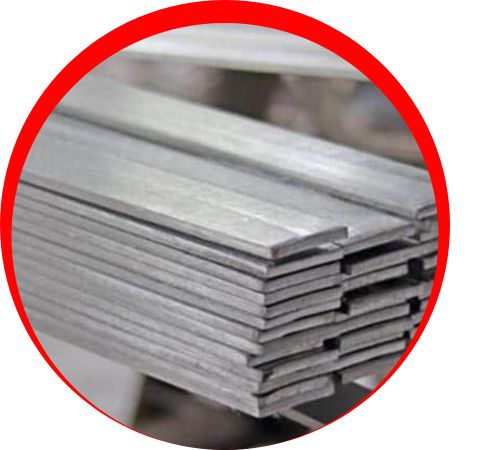

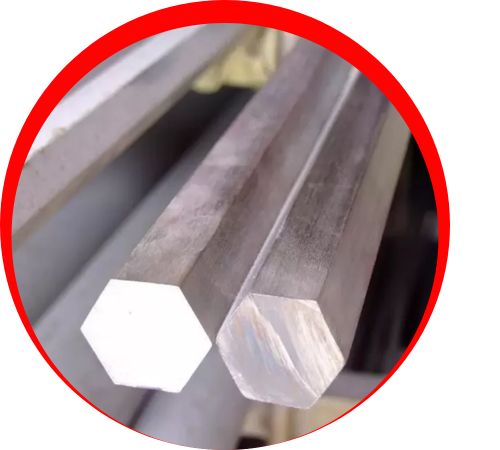

| Form | : | Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging Etc. |
| Grade | C | Mn | Si | Cu | Fe | Ni | S |
| Monel K500 | 0.25 max | 1.5 max | 0.5 max | 27.00 – 33.00 | 0.5 – 2 | 63.00 min | 0.010 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.44 g/cm3 | 1350 °C (2460 °F) | Psi – 1,60,000 , MPa – 1100 | Psi – 1,15000 , MPa – 790 | 20% |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel k500 Bars in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Monel K500 bars are frequently used in settings that demand exceptional strength and resistance to corrosion. Because of their exceptional performance in saltwater, they are utilised in the marine industry for propeller shafts, pump shafts, and valve components. They are used in downhole instruments, safety valves, and fasteners that are subjected to sour gas and high pressures in the oil and gas industry. Instrumentation supports, structural fittings, and landing gear components are examples of aerospace applications. They are used in chemical processing facilities to handle gases and corrosive fluids. Monel K500 bars are essential in high-stress and critical engineering systems because of their resilience to wear, non-magnetic nature, and durability.
