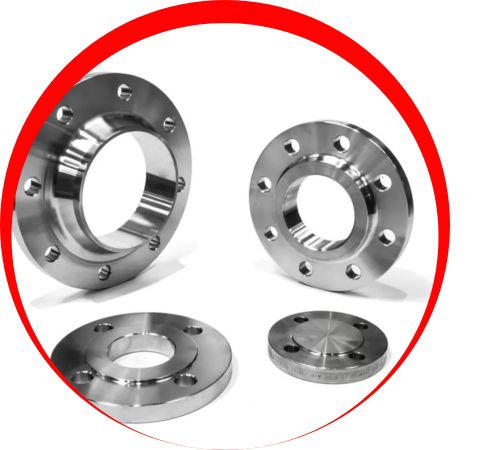

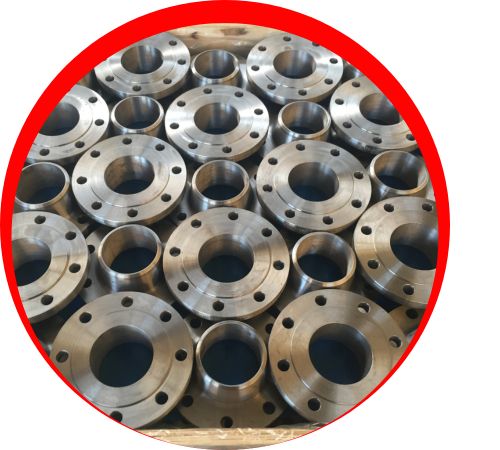

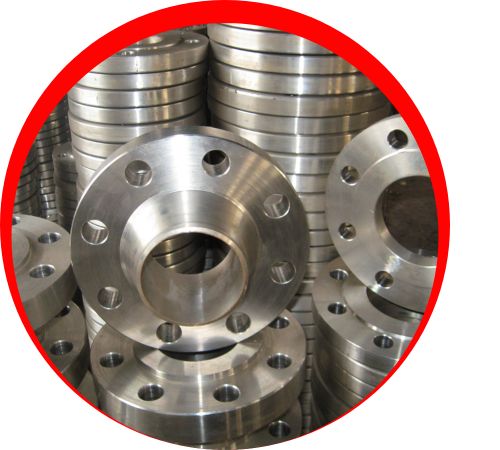

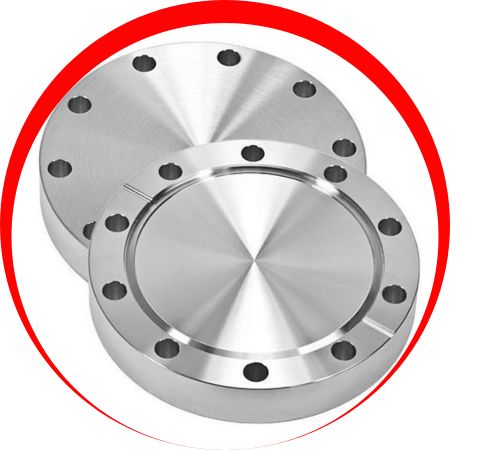

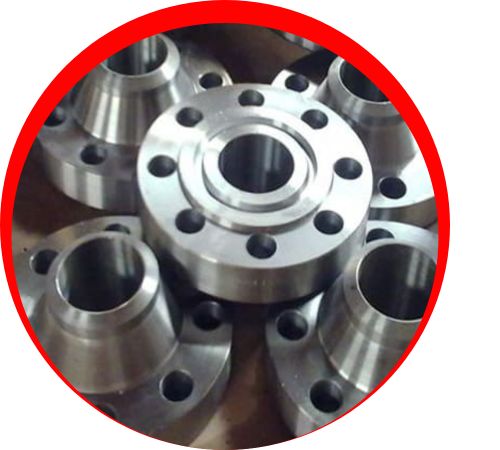

In Houston, Texas, Elvis Nickel Alloys is a leading producer and supplier of Monel Flanges, providing dependable and effective flanging solutions for industrial uses. Because they are made from premium Monel 400 and Monel K500 alloys, our Monel flanges offer exceptional strength, resistance to corrosion, and long-term durability in harsh conditions. These flanges are perfect for critical piping and pressure systems and come in a variety of configurations, including slip-on, weld neck, blind, threaded, and socket weld. At Elvis Nickel Alloys, we prioritise meticulous engineering, stringent quality assurance, and tailored solutions to satisfy the various demands of international industries.
The Monel 400 or Monel K500 alloys used to make Monel flanges are mainly composed of 28–34% copper and roughly 63% nickel, with trace amounts of silicon, carbon, manganese, and iron. For precipitation hardening, Monel K500 contains titanium (0.35–0.85%) and aluminium (2.3–3.15%). Tensile strength ranges from 480 to 620 MPa for Monel 400 and up to 1100 MPa for Monel K500. Both varieties have good ductility, high fatigue strength, and outstanding corrosion resistance. Monel flanges are extremely resistant to seawater, acidic, and alkaline environments, and they maintain their mechanical integrity over a broad temperature range.
| Specifications | Monel 400 Flanges |
|---|---|
| Methods Of Forging | Casting Forging Rolling Cutting |
| DIN Standard | PN6/ PN10/ PN16/ PN25/ PN40/ PN64 |
| Equipment | Pushing Machine Press machine electric bevelling machine |
| Class | Class 150 to 2500. PN 2.5 to PN 250. |
| Use In | Marine & dredging Sanitation Process Instrumentation Oil and Gas Petrochemical/ Refinery/Chemical Power etc. |
| Manufacturing Productivity | 600 ton per month |
| JIS Standard | 5K/ 10K/ 16K 20K/ 30K/ 40K/ 63K |
| Size | 1/2” to 24” (customized diameters: up to 60”.) |
| Face Type | RF (Raised Face), RTJ (Ring Type Joint) |
| EN Standard | 6Bar/ 10Bar/ 16Bar/ 25Bar/ 40Bar |
| Supporting Material For Flanges | Gasket/ Ring Joint/ Flanges Bolts |
| Testing | Hydrostatic testing machine Magnetic particle detector Direct-reading Spectrograph UI trasonic flaw detector |
| Grade | C | Mn | Si | Cu | S | Ti | Ni | Al | Fe |
| Monel 400 | 0.3 max | 2.0 max | 0.5 max | 28.0 – 34.0 | 0.02 max | – | 63.0 min | 0.50 max | 1.0 – 2.5 |
| Temp° F | Tensile (psi) | .2% Yield (psi) | Elongation in 2” % |
|---|---|---|---|
| 70 | 110,600 | 54,900 | 44 |
| 1000 | 89,000 | 35,600 | 49 |
| 1200 | 83,000 | 35,400 | 54 |
| 1400 | 67,000 | 34,400 | 53 |
| 1600 | 45,000 | 28,200 | 58 |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel Flanges in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Industries that need dependable and corrosion-resistant joining components frequently use monel flanges. They are used in offshore equipment, ballast systems, and seawater piping in maritime settings. Monel flanges are utilised in storage tanks, heat exchangers, and piping systems that handle corrosive media in the chemical processing industry. They are used in subsea pipelines, wellheads, and sour gas applications in the oil and gas sector. They are used in high-temperature, high-pressure connections in power generation and aerospace facilities. Monel flanges are perfect for demanding, high-performance installations because of their non-magnetic qualities, high strength, and resistance to pitting and stress corrosion.
