High-performance nickel-copper alloy solutions for demanding industrial settings are provided by Elvis Nickel Alloys, a reputable manufacturer and supplier of Monel Bars in Houston, USA. Our Monel bars, which come in grades 400 and K500, are renowned for their remarkable ability to withstand corrosion, particularly in applications involving chemical processing and marine environments. These bars, which come in a variety of sizes and finishes, are perfect for heavy-duty applications, fabrication, and machining. Elvis Nickel Alloys is dedicated to quality, accuracy, and client satisfaction. They provide Monel bars that are customised to your unique engineering and project requirements while meeting international standards.
The main components of Monel 400 or Monel K500, which are used to make Monel bars, are nickel (~63%) and copper (28–34%), with trace amounts of iron, manganese, carbon, and silicon. While Monel K500, which is precipitation-hardened with titanium and aluminium, offers superior wear resistance and increased tensile strength up to 1100 MPa, Monel 400 offers tensile strength of 480–620 MPa along with good ductility. Both grades offer exceptional resistance to corrosion, particularly in chemical and saltwater environments. Because these bars are non-magnetic and maintain their mechanical integrity over a broad temperature range, they can be used in high-load and precise applications.
| Specification | ASTM B164 / ASME SB164 |
|---|---|
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

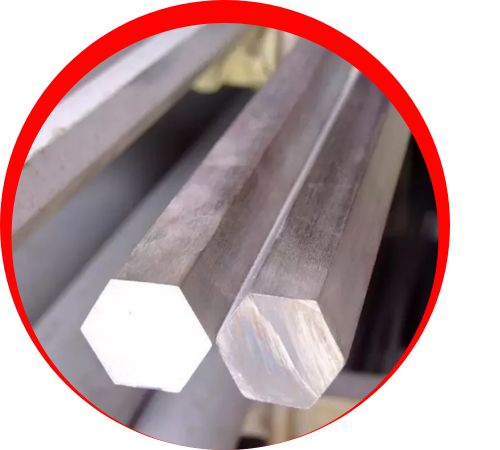

| Hex Bar size | 2-100mm A/F |

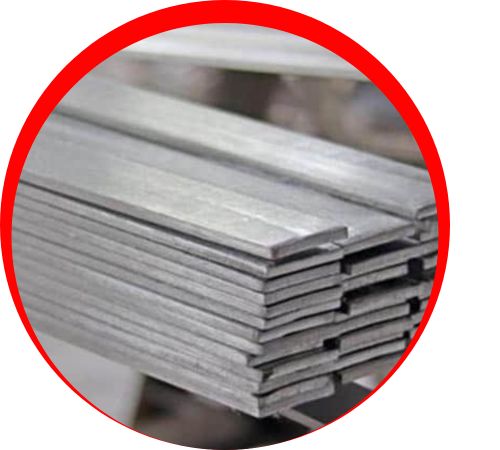

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| Monel 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Monel 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel Bars in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Industries that need strong, corrosion-resistant metal for mechanical and structural components frequently use monel bars. They are perfect for shafts, fittings, and pump parts that are exposed to saltwater in marine engineering. They are utilised in piping systems, reactor vessels, and process equipment that handles acids and alkalis in the chemical industry. High-pressure valves, fasteners, and downhole tools are examples of oil and gas applications. Monel bars are used in the power generation and aerospace industries for structural elements and engine parts that need to be strong and non-magnetic. They are a preferred material in heavy-duty and precision applications due to their long service life and ease of machining.
