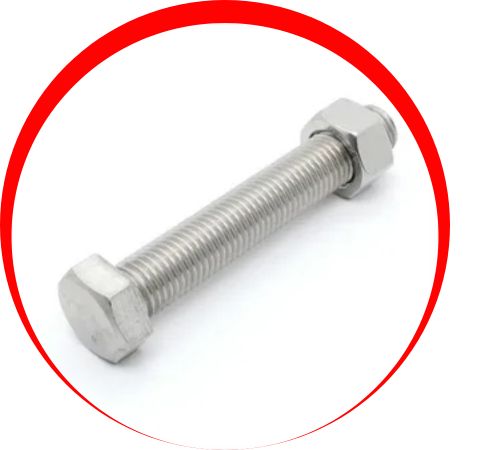

Based in Houston, USA, Elvis Nickel Alloys is a respectable producer and supplier of Monel 400 Stud Bolts, offering corrosion-resistant fastening solutions for demanding industrial applications. Our Monel 400 stud bolts are designed to be incredibly strong and durable in harsh settings, such as chemical processing systems, offshore, and marine environments. These bolts come in a variety of thread types, lengths, and diameters and are precision-machined to satisfy international standards. At Elvis Nickel Alloys, we place a high value on quality, dependability, and prompt delivery while offering specialised fastening solutions made to satisfy the exacting requirements of customers worldwide in a variety of industrial sectors.
The main constituents of Monel 400 Stud Bolts are 63% nickel and 28–34% copper, with trace amounts of silicon, carbon, manganese, and iron. Excellent corrosion resistance is offered by this solid-solution alloy in alkaline, acidic, and saltwater conditions. Even at below-freezing temperatures, Monel 400 maintains good ductility and mechanical performance thanks to its tensile strength of 480–620 MPa and yield strength of 170–345 MPa. These bolts are dependable for use in extremely corrosive and demanding operating conditions because they are non-magnetic, have good fatigue strength, and show outstanding resistance to stress corrosion cracking.
| Material Specification | ASTM F 467 ASME SF 467, UNS 4400 Bolts |
|---|---|
| Monel 400 bolts ISO/ DIN | ISO 4035 , ISO 4032 , DIN 936 , ISO 7040 , ISO 7040 , DIN 315 , ISO 5448 , ISO 4161 , DIN 1587 , DIN 6923 , DIN 934 , DIN 917 , ISO 7035 , DIN 439 , ISO 8675 , DIN 985 , DIN 935 , DIN 17754 |
| Scope Of Manufacture |
|
| Monel 400 Bolts, Studs Threads: | METRIC, BSW, BSF, UNC, UNF or as required |
| Monel 400 bolting materials Surface Coating: |
All surface finishes offered, including Galvanised, Zinc, Electroless Nickel, Sherardized,Geomet & PTFE, Dacromet |
| In Form of: | Hex, Square, Round, Threading as per Gauge Etc. |
| Head drive: | Phillips, Slotted, Phillips/Slot, Six-Lobe, etc |
| Standard | DIN, UNI, ISO, JIS, GB, IS, BS, ASME, ANSI, ASTM and all International Standards |
| Bolts Size | M2, M2.5, M3, M4, M5, M6, M8, M10, M12, M14, M16, M20, M24, M30, M36 to M160 |
| Length | 3 mm to 200 mm |
| Source of raw materials | Tata Steel, JSPL, RINL, Usha Martin, Dhamm Steel, Mukund Steel etc. |
| Monel 400 bolting Test Certificate: | Manufacturer Test Certificate as per EN 10204 / 3.1 |
| Alloy 400 Fasteners Standard: | ANSI – American National Standards Institute
DIN: DIN 931, DIN 933, DIN 934, DIN 970 UTS – Unified Thread Standard : UNC, UNF, UNEF, UNS, NPT, NPTF ISO – International Organization for Standardization : ISO 4032, ISO 4033, JIS standards |
| finishing: | Zinc (yellow, white, blue, black), black oxide, Geometry, Dacroment, anodizing, nickel plated, plated zinc-nickel, Stainless steel: Passivated Self-Colour, Hot Dip Galvanised (HDG), Bright Zinc Plated (BZP), Sherardized, Stainless Steel, Mechanically Applied coating and some special one like DACROMET |
| Production process | M2-M24: Cold Froging, hot forging M24-M100, machining and CNC for Customized connecting element |
| Popular Types of Alloy 400 Bolts | Monel 400 Hex Bolts, Flange Bolts, Hex Head Bolts, Lag Bolts, Square Bolts, Eye Bolts, U Bolts, T Bolts, Counter sunk Bolts etc. |
| Types of Alloy 400 Nut | Monel 400 Hex Head Nut, Eye Nut, Dome Nut, Wing Nut, T Nut, Panel Nut, Lock Nut, Coupling Nut, Square Nut, Acorn Nut etc. |
| Types of Alloy 400 Screw | Monel 400 Hex Head Cap Screws, Socket Set Screws, Anchor Screws, Blind Rivet, Socket Head Screws, Concrete Screws, Shoulder Screws, Panel Screws, Threaded Screws, Machine Screws etc. |
| Widely used Alloy 400 Washer | Monel 400 Machine Washers, Flat Washer, Star Washers, Sealing Washer, Lock Washer, Split Washer etc. |
| Packing: | IN BULK: canton, pallet, Small Boxs / carton / pallet, or customer request |
| Element | Content (%) |
| Nickel, Ni | 63.00 min |
| Silicon, Si | 0.5 max |
| Carbon, C | 0.3 max |
| Sulphur, S | 0.024 |
| Copper, Cu | 28-34 |
| Iron, Fe | 2.5 max |
| Manganese, Mn | 2 max |
|
Properties
|
Metric
|
Imperial
|
|
Tensile strength(annealed)
|
517-620 MPa
|
75-90 ksi
|
|
Yield strength
|
172-345 MPa
|
25-50 ksi
|
|
Modulus of elasticity
|
179 GPa
|
26000 ksi
|
|
Poisson’s ratio
|
0.32
|
0.32
|
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel 400 Stud Bolts in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
For fastening applications in industries requiring high corrosion resistance and mechanical dependability, Monel 400 Stud Bolts are perfect. They are employed in seawater systems, offshore platforms, and shipbuilding in the maritime sector. They are used in the oil and gas industry in drilling apparatus, pipelines, and refinery parts that are subjected to high salinity and sour gas. They are used in reactors, valves, and pipe flanges that handle corrosive fluids in chemical processing facilities. Their robustness and resilience to high temperatures are also advantageous to the power generation and aerospace sectors. Monel 400 stud bolts are crucial for crucial fastening in challenging conditions because of their strength and non-magnetic characteristics.
