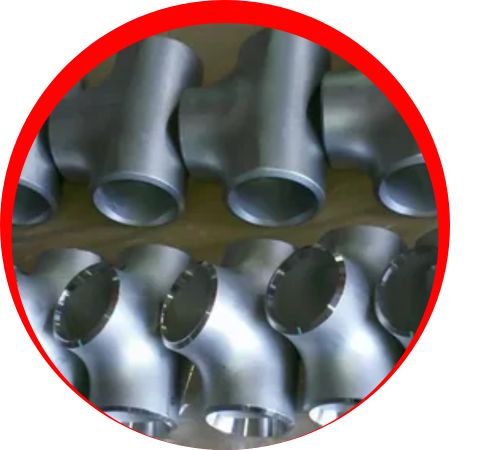

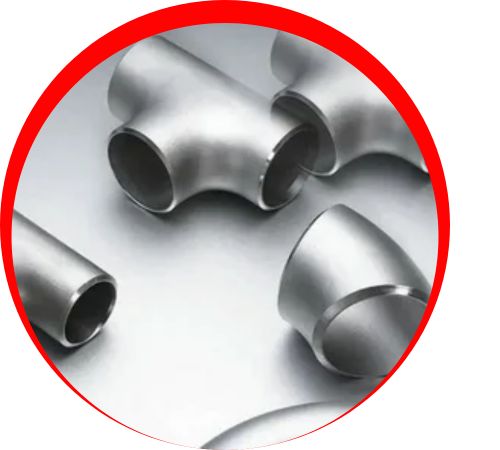

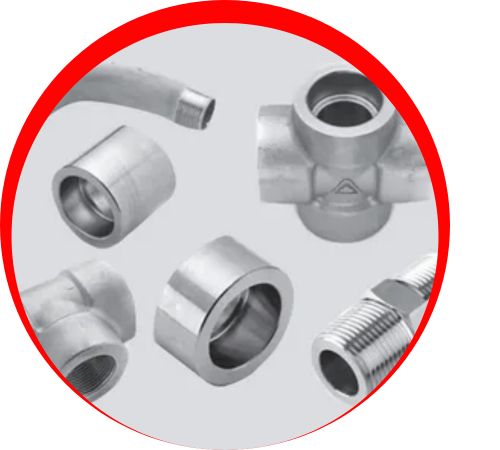

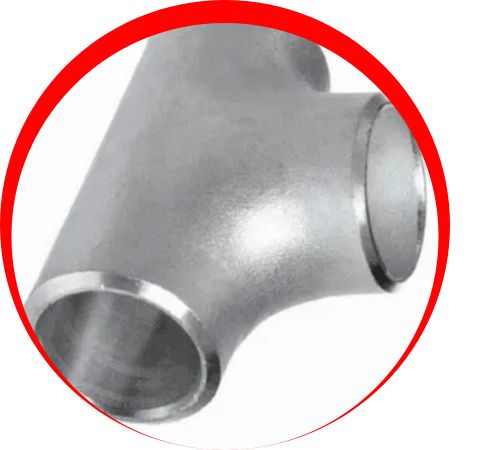

In Houston, USA, Elvis Nickel Alloys is a reputable manufacturer and supplier of Monel 400 Forged Fittings, providing strong, corrosion-resistant fittings for demanding applications. Our Monel 400 forged fittings are designed to be used in harsh conditions where exceptional strength and resistance to chemicals are crucial. These fittings, which are appropriate for high-pressure systems, come in a variety of forms, such as elbows, tees, couplings, unions, and reducers. Elvis Nickel Alloys guarantees that every fitting satisfies exacting quality standards and is expertly crafted to satisfy a variety of industry demands in the power generation, chemical, oil and gas, and marine sectors.
About 63% nickel and 28–34% copper make up Monel 400 Forged Fittings, with trace amounts of silicon, carbon, manganese, and iron. Excellent corrosion resistance is provided by this solid-solution alloy, particularly in acidic and salty environments. Even at below-freezing temperatures, it retains its high ductility and impact resistance while offering a tensile strength of 480–620 MPa and a yield strength of 170–345 MPa. Because it is non-magnetic, Monel 400 operates consistently over a broad temperature range. It is perfect for forged parts used in harsh and corrosive industrial environments because of its mechanical qualities.
| Standard | ASTM B564 / ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | C | Mn | Si | S | Cu | Fe | Ni |
| 400 | 0.30 max | 2.00 max | 0.50 max | 0.024 max | 28.00 – 34.00 | 2.50 max | 63.00 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 400 | 8.8 g/cm3 | 1350 °C (2460 °F) | Psi – 80,000 , MPa – 550 | Psi – 35,000 , MPa – 240 | 40 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Monel 400 Forged Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Many industries that require high mechanical strength and corrosion resistance use Monel 400 Forged Fittings. They are used in ballast systems, valve assemblies, and seawater piping in maritime applications. They are used in systems that handle caustic solutions, sulphuric acid, and hydrofluoric acid in the chemical processing industry. These fittings are utilised in refinery systems, sour gas service lines, and offshore platforms in the oil and gas industry. They are used for high-temperature, high-pressure steam and water lines in power plants. Monel 400 forged fittings are perfect for demanding, high-performance settings because of their long service life and resistance to stress corrosion cracking.
