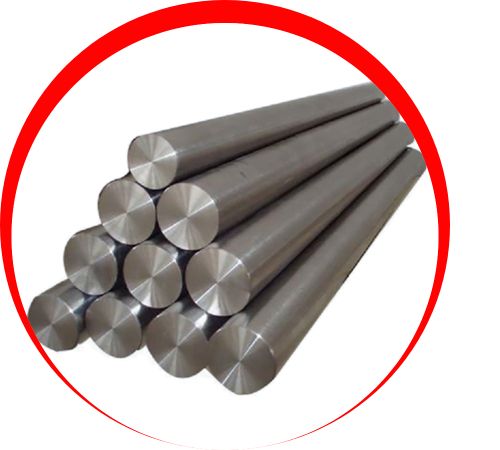

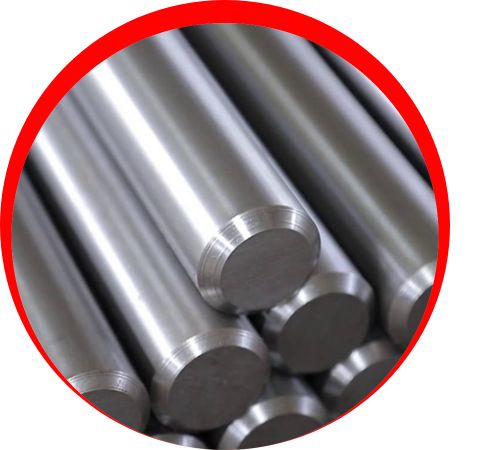

Elvis Nickel Alloys is a well-respected manufacturer and supplier of Invar 36 Bars, located in Houston, USA. We specialize in providing precision-engineered materials that boast exceptional dimensional stability for critical applications. Invar 36, a nickel-iron alloy with 36% nickel, is crafted for its ultra-low coefficient of thermal expansion. Our Invar 36 bars are perfect for environments where minimal dimensional changes are crucial, even with temperature shifts. Built to comply with strict ASTM and aerospace standards, these bars find their place in aerospace tooling, cryogenic systems, defense, and electronics. At Elvis Nickel Alloys, we guarantee high-quality, thermally stable bars that offer excellent machinability and corrosion resistance, meeting the demands of rigorous engineering projects.
Invar 36 is a nickel-iron alloy made up of about 36% nickel and the rest iron, along with small amounts of carbon, manganese, and silicon. Its standout feature is its very low coefficient of thermal expansion (~1.3 x 10⁻⁶/°C) between –100°C and 260°C. Invar 36 bars provide a tensile strength ranging from 490 to 620 MPa, along with high dimensional stability and good toughness. They strike a balance between being soft yet strong, making them easy to machine and effective in both ambient and cryogenic conditions. These qualities make Invar 36 an excellent choice for precision applications that demand thermal consistency and structural reliability.
| Standards : | ASTM F1684, ASME SF1684 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

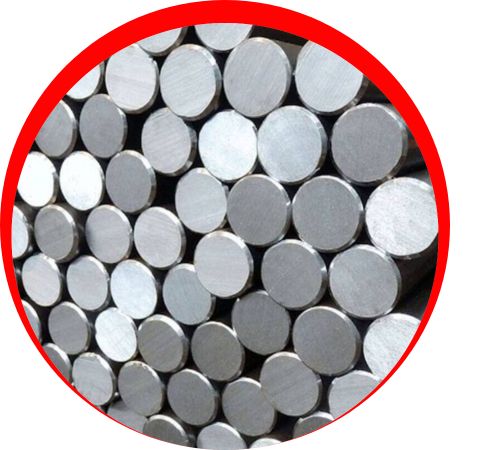

| Round bar size : | Diameter: 3-~800mm |

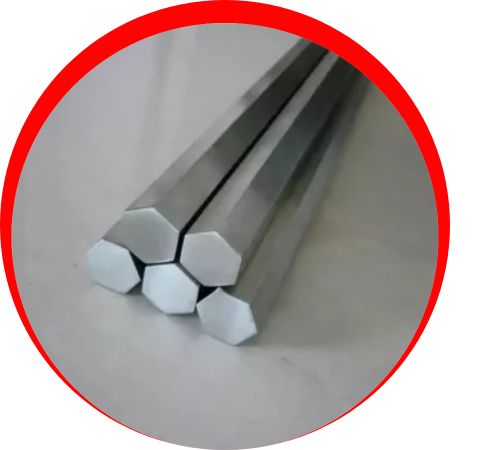

| Hex Bar size : | 2-100mm A/F |
| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

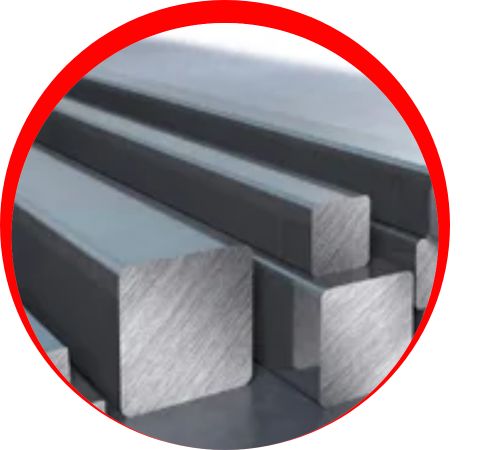

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Fe | Ni | Cr | P | Mo | Co |
| Invar 36 | 0.10 max | 0.06 max | 0.35 max | 0.025 max | Rem | 35-38 | 0.50 max | 0.025 max | 0.50 max | 1.0 max |
| Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Psi – 71,000 , MPa – 490 | Psi – 35,000 , MPa – 240 | 42 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Invar 36 Bar in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Invar 36 Bars are extensively utilized in industries that require outstanding dimensional stability, including aerospace, electronics, cryogenics, laser systems, and optical instrumentation. Their applications range from aerospace tooling and satellite components to seismic sensor housings, molds for composite materials, liquefied gas tanks, and scientific measuring devices. The unparalleled resistance of Invar 36 to thermal expansion makes it essential for projects where precise alignment is critical.
