Varun Sheets and Plates is a reputable manufacturer and supplier of top-notch Inconel Forged Fittings, proudly based in Dubai, UAE. We’ve built a solid reputation for delivering corrosion-resistant and high-performance nickel alloy components, catering to a diverse array of industries like petrochemical, aerospace, marine, and power generation. Our Inconel forged fittings are crafted using cutting-edge forging techniques and rigorous quality control measures, ensuring they boast superior strength, durability, and resistance to extreme conditions. With a keen focus on precision and reliability, Varun stands out as a trusted source for Inconel forged solutions throughout the Middle East and beyond.
When it comes to Inconel Forged Fittings, they’re primarily composed of nickel-based alloys such as Inconel 600, 625, 718, and 800 series. These materials provide exceptional resistance to oxidation, corrosion, and high temperatures, maintaining their mechanical properties even in harsh thermal and chemical environments. Typically, they showcase tensile strengths ranging from 550 to 1,270 MPa and yield strengths up to 1,100 MPa, depending on the specific grade. Thanks to their excellent weldability, toughness, and fatigue resistance, Inconel forged fittings are perfect for high-pressure and high-temperature applications.
| Specifications | ASTM B564 & ASME SB564 |
| Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Grades | Inconel 600, 601, 625, 718, 783, 690, X750 Forged Fittings |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Grade | Ni | C | Mn | Si | S | Cu | Fe | Cr |
| Inconel 600 | 72.00 min | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 14.00 – 17.00 |
| Inconel 601 | 58.0 – 63.0 | 0.10 max | 1.0 max | 0.5 max | 0.015 max | 1.0 max | Balance | 21.0 – 25.0 |
| Inconel 625 | 58.0 min | 0.10 max | 0.50 max | 0.50 max | 0.015 max | – | 5.0 max | 20.0 – 23.0 |
| Inconel 718 | 50.00 – 55.00 | 0.08 max | 0.35 max | 0.35 max | 0.015 max | 0.30 max | – | 17.00 – 21.00 |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel 600 | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
| Inconel 601 | 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
| Inconel 625 | 8.4 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 517 | 42.5 % |
| Inconel 718 | 8.2 g/cm3 | 1350 °C (2460 °F) | Psi – 1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel Forged Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele
Contact us to get a quick quote for your requirement.

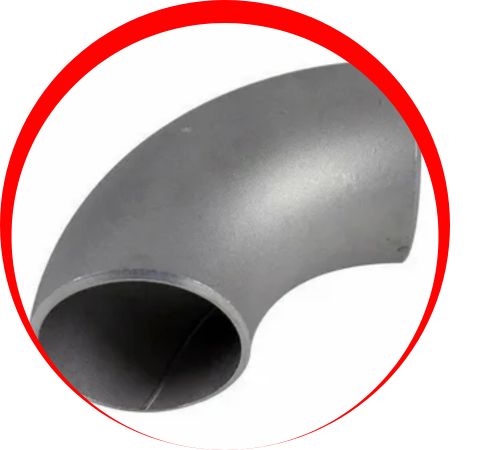

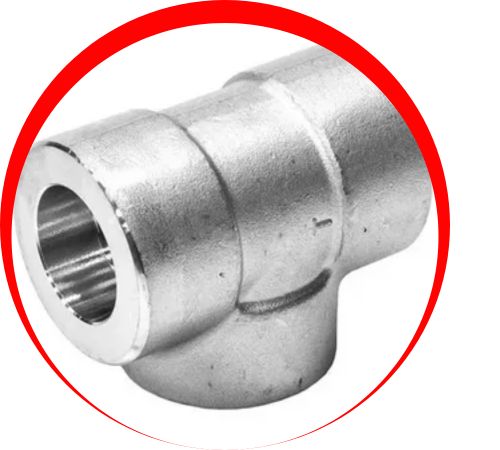

You’ll find Inconel Forged Fittings widely utilized in piping systems that require robust resistance to corrosion, pressure, and heat. They’re essential in applications like offshore platforms, heat exchangers, chemical processing lines, nuclear reactors, and aerospace fuel systems. These fittings—including elbows, tees, couplings, unions, and plugs—are engineered to deliver leak-free performance even under the most extreme operational conditions. Their remarkable ability to resist chloride-ion stress corrosion and oxidation at elevated temperatures makes them vital for mission-critical installations. With Varun’s forged Inconel fittings, you can count on long service life, precise dimensions, and consistent performance in demanding industrial settings.
