Elvis Nickel Alloys, located in Houston, USA, is a prominent manufacturer and supplier of high-grade Inconel 800H bars, serving industries worldwide. With a reputation for precision engineering and unmatched quality, the company provides bars that meet the highest performance standards in extreme environments. Their Inconel 800H bars are ideal for high-temperature and corrosive applications, produced using advanced metallurgical processes and rigorous quality checks. Elvis Nickel Alloys supports clients in sectors like petrochemical, power generation, and aerospace, offering timely deliveries, customized solutions, and expert technical support. Their dedication to excellence ensures long-term reliability and performance in critical applications.
Nickel (30–35%), iron (39.5% min), and chromium (19–23%) make up the majority of Inconel 800H bars, with titanium, aluminium, and carbon (0.05–0.10%) added. These bars are renowned for their exceptional strength at high temperatures as well as their ability to withstand carburisation and oxidation. Tensile strength of roughly 585 MPa, yield strength of roughly 275 MPa, and elongation of 30–40% are examples of mechanical properties. They are perfect for extended exposure to heat because they retain structural stability at high temperatures. Even in harsh chemical and thermal conditions, Inconel 800H bars show outstanding creep and rupture strength.
| Standards : | ASTM B408, ASME SB408 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

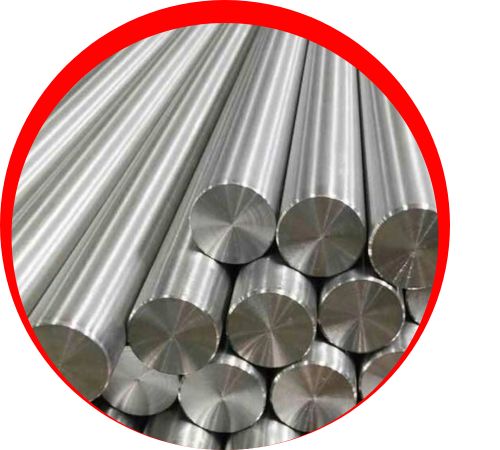

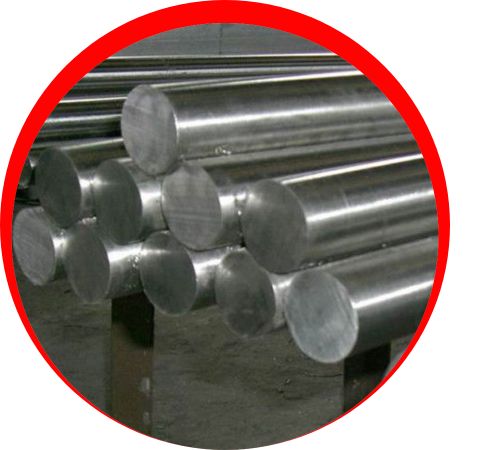

| Round bar size : | Diameter: 3-~800mm |

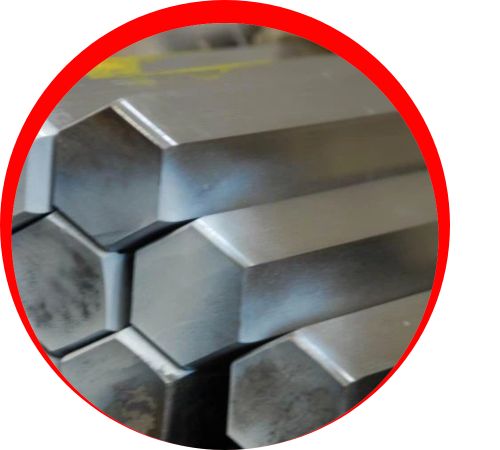

| Hex Bar size : | 2-100mm A/F |

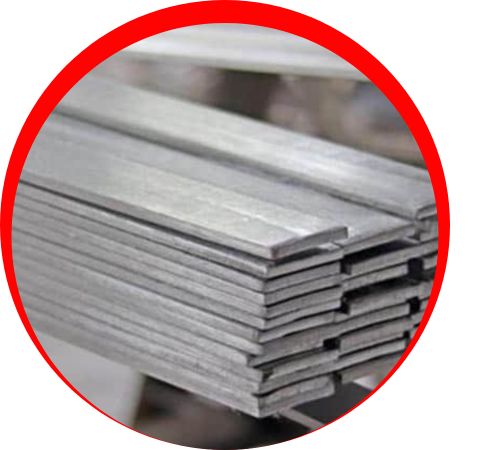

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

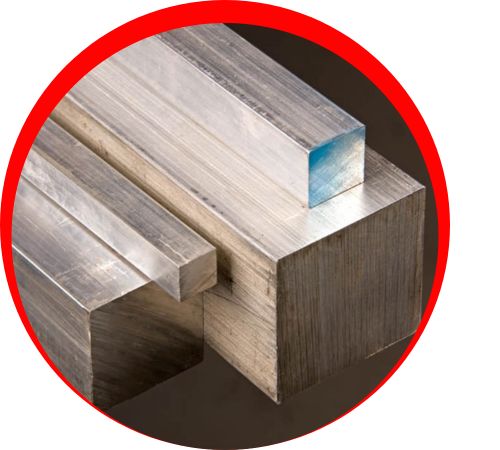

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |
| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| 800H | 0.05 – 0.10 | 1.50 max | 1.00 max | 0.015 max | 0.75 max | 39.50 min | 30.00 – 35.00 | 19.00 – 23.00 | 0.15 – 0.60 | 0.15 – 0.60 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1385 °C (2525 °F) | Psi – 75,000 , MPa – 520 | Psi – 30,000 , MPa – 205 | 30 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 800-H Bar in Texas, UAE, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the UAE, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
High-temperature industrial applications make extensive use of Inconel 800H bars. They are used in process piping, heat exchangers, and ethylene furnace components in petrochemical facilities. They are used in steam generator tubing, reheaters, and superheaters in power generation facilities, particularly in nuclear and thermal plants. They are appropriate for use in pressure vessels, radiant tubes, and industrial furnaces due to their resistance to oxidation and carburisation. Their mechanical integrity under heat and stress is important to the chemical processing and aerospace industries. Any application requiring long-term performance in harsh thermal and chemical environments must use Inconel 800H bars because of their resilience to corrosion and durability.
