Varun Sheets and Plates is a trusted manufacturer and supplier of top-notch Inconel 718 Forged Fittings, proudly based in Dubai, UAE. Known for providing high-performance nickel alloy components, Varun serves a variety of industries, including aerospace, oil and gas, petrochemicals, and power generation. Our Inconel 718 forged fittings are crafted using cutting-edge forging techniques and rigorous quality control measures to guarantee outstanding strength, precise dimensions, and excellent corrosion resistance. With a strong focus on quality and customer satisfaction, Varun delivers durable and dependable forged solutions for extreme environments throughout the Middle East.
Inconel 718 Forged Fittings are constructed from a robust, corrosion-resistant nickel-chromium alloy that includes significant amounts of niobium, molybdenum, and iron. These fittings boast impressive mechanical properties, such as tensile strength reaching up to 1,270 MPa and high yield strength, along with remarkable creep and fatigue resistance. They maintain their structural integrity even in extreme temperatures—whether high or cryogenic—and are highly resistant to oxidation, pitting, and stress corrosion cracking.
Specifications : ASTM B564 / ASME SB564
Dimensions : ASME B16.11, MSS-SP-79, MSS-SP-83, MSS-SP-95, MSS-SP-97, BS3799
Size : 1/8″ NB to 4″ NB (Socketweld & Screwed-Threaded)
Type : Socketweld Fittings, Screwed-Threaded Fittings (NPT or PT Type)
Rating Pressure : Threaded End – 2000 /3000/ 6000 LBS. Socket-weld End – 3000 / 6000/ 9000 LBS.
| Grade | C | Mn | Si | P | S | Cr | Cu | Ni | Fe |
| Inconel 718 | 0.08 max | 0.35 max | 0.35 max | – | 0.015 max | 17 – 21 | 0.30 max | 50.0-55.0 | – |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.2 g/cm3 | 1350 °C (2460 °F) | Psi –1,35,000 , MPa – 930 | Psi – 75,000 , MPa – 482 | 45 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 718 Forged Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.

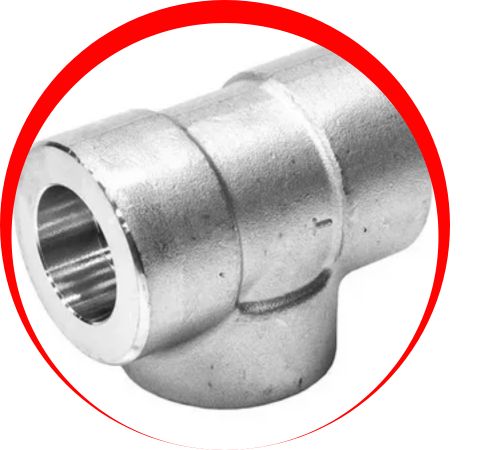

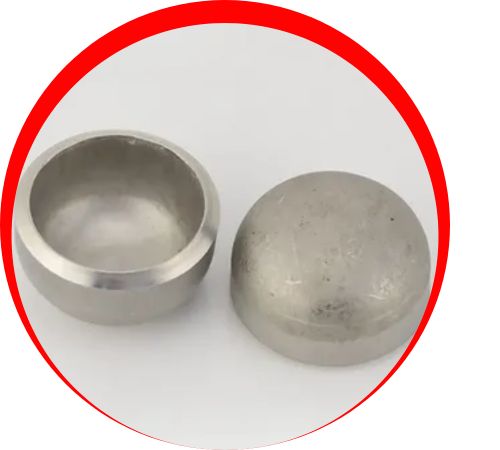

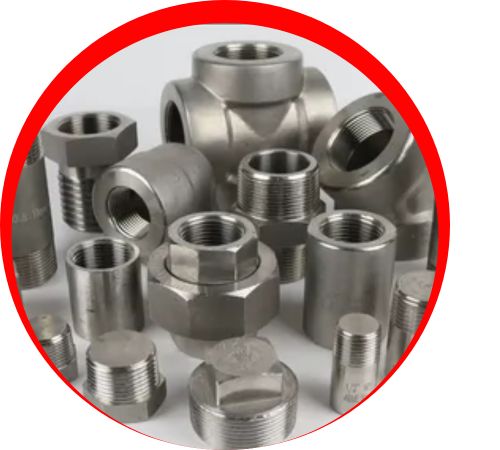

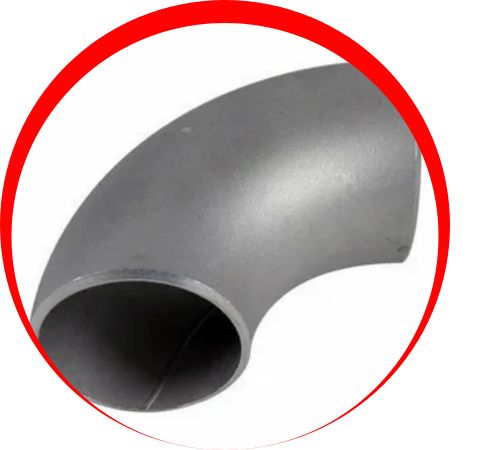

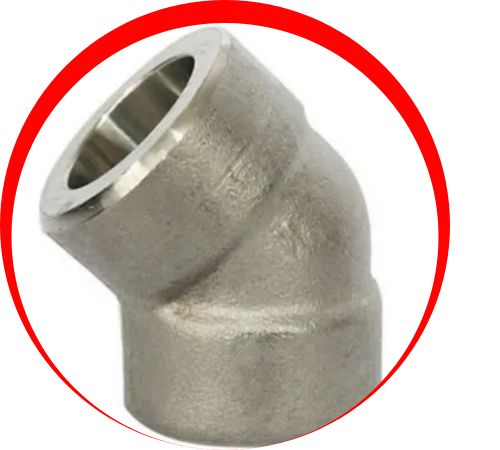

Inconel 718 Forged Fittings find extensive use in high-stress applications like jet engines, offshore drilling equipment, gas turbines, heat exchangers, and nuclear reactors. Common types of fittings include elbows, tees, couplings, unions, plugs, and bushings, all designed to provide secure, leak-proof connections in piping systems that face intense pressure and temperature. Their long service life and exceptional resistance to harsh operating conditions make them the go-to choice for mission-critical installations. Varun offers Inconel 718 forged fittings in a range of sizes and pressure ratings, ensuring unmatched reliability for complex industrial applications.
