High-performance parts made to resist harsh temperatures and corrosive conditions are available from Elvis Nickel Alloys, a top producer and supplier of Inconel 617 Forged Fittings in Houston, USA. For use in demanding industrial applications, our Inconel 617 forged fittings, such as elbows, tees, couplings, and unions, are precisely engineered to satisfy ASTM and ASME specifications. These fittings are extensively utilised in the petrochemical, chemical processing, power generation, and aerospace industries due to their exceptional mechanical strength and resistance to oxidation. Elvis Nickel Alloys is a reliable partner for premium alloy solutions in demanding service conditions because of our reliable quality, customised dimensions, and timely delivery.
Nickel (44.5–60%), chromium (20–24%), cobalt (10–15%), and molybdenum (8–10%) make up Inconel 617 Forged Fittings, which offer exceptional resistance to high-temperature oxidation and carburisation. These fittings have outstanding creep and stress rupture strength, a tensile strength of 690–760 MPa, and stability up to 1,093°C (2,000°F). Long-lasting performance in demanding chemical and thermal environments is guaranteed by their sturdy metallurgical structure. They are perfect for high-pressure, high-temperature systems subjected to mechanical and environmental stress because of their forged construction, which increases their durability and pressure-handling capacity.
| Standards | ASTM B564/ ASME SB564 |
| Dimensions | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size | 1/8” NB to 4” NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |

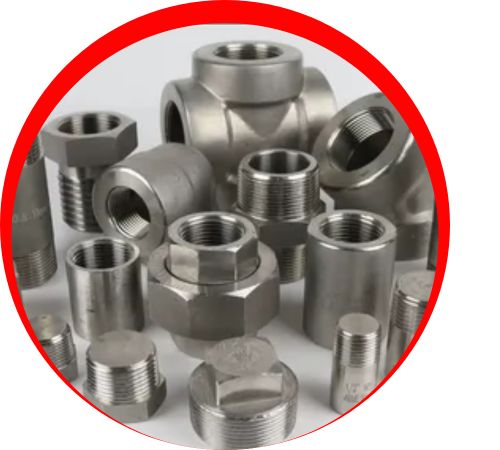

| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Thread | NPT, BSPT, BSPP |
| Forged Fittings Test Certificates |
|

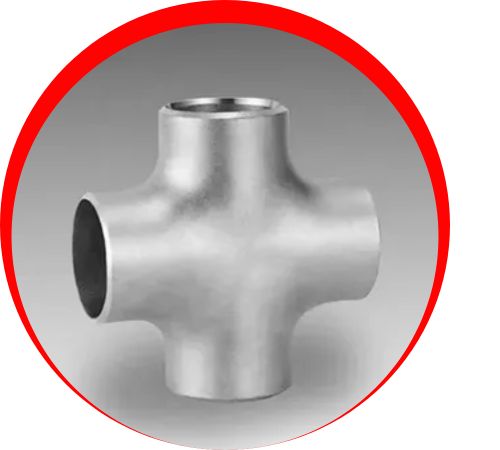

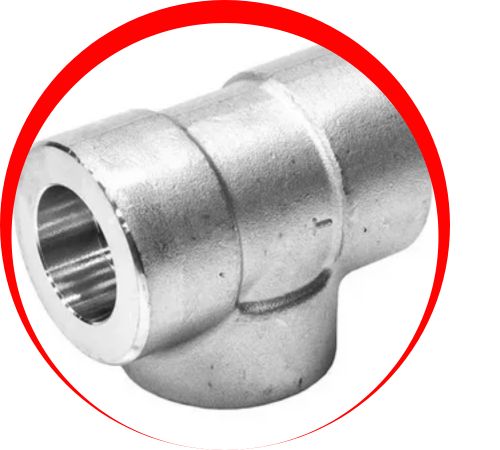

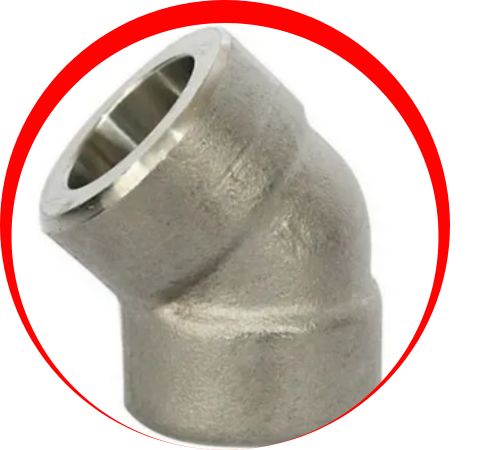

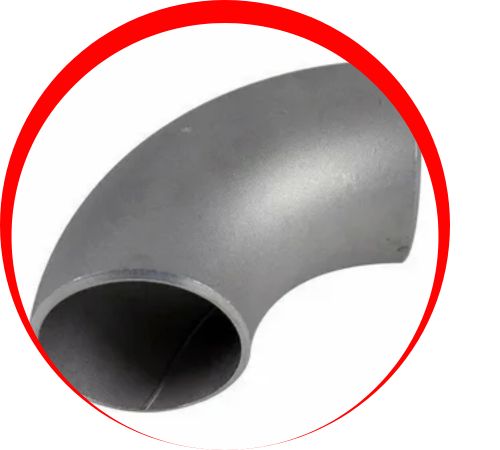

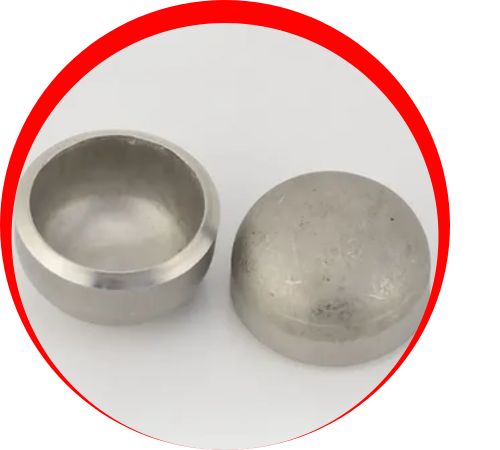

| Specialized manufacturer of | 90º Elbows, 45º Elbows, Tees, Cross, Couplings, Reducers, Inserts, Caps, Nipples, and Unions, Forged Pipe Fittings, Socket Weld & Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows, Plugs |
| C | Mn | S | Si | Cr | Mo | Ni | Cu | Ti | Al | B | Co | Fe |
| 0.05-0.15 | 1.0 Max | 0.015 Max | 1.0 Max | 20.0-24.0 | 8.0-10.0 | 44.5 Min | 0.5 Max | 0.6 Max | 0.8-1.5 | 0.006 Max | 10.0-15.0 | 3.0 Max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 617 Forged Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
In power plants, Inconel 617 Forged Fittings are widely used to connect components that are subjected to high temperatures and pressures, especially in gas turbines, heat exchangers, and superheater systems. These fittings are utilised in exhaust systems and jet engine assemblies in the aerospace sector. They are used in reactors, reformers, and piping systems that transport corrosive fluids at high temperatures in the chemical and petrochemical industries. They are also perfect for thermal processing equipment, waste incineration systems, and nuclear power. In crucial applications requiring both mechanical strength and corrosion resistance, Inconel 617 forged fittings guarantee leak-proof, long-lasting connections.
