Based in Houston, Texas, Elvis Nickel Alloys is a well-known manufacturer and supplier of high-quality Inconel 600 Bars to industrial customers in Dubai, United Arab Emirates. The solid-solution nickel-chromium-iron alloy Inconel 600 is renowned for its remarkable resistance to corrosion, heat, and stress-induced cracking in challenging conditions. Precision-engineered round, hex, square, and flat bars that satisfy global standards like ASTM B166 are supplied by Elvis Nickel Alloys. The chemical, marine, and aerospace industries all make extensive use of these bars. Elvis offers dependable solutions for corrosive and high-temperature service conditions with an emphasis on performance and quality.
The main constituents of Inconel 600 Bars from Elvis Nickel Alloys are nickel (≥72%), chromium (14–17%), and iron (6–10%), with trace amounts of silicon, manganese, and copper. Excellent resistance to oxidation, corrosion caused by chloride-ion stress, and a variety of acidic and alkaline environments is offered by this special blend. The alloy has an elongation of 30–40%, a yield strength of about 310 MPa, and a tensile strength of 655 MPa. Inconel 600 is perfect for high mechanical and thermal loads in industrial operations because it retains its structural integrity up to 1093°C (2000°F).
| Specification | ASTM B166 UNS N06600, AMS 5665 |
|---|---|

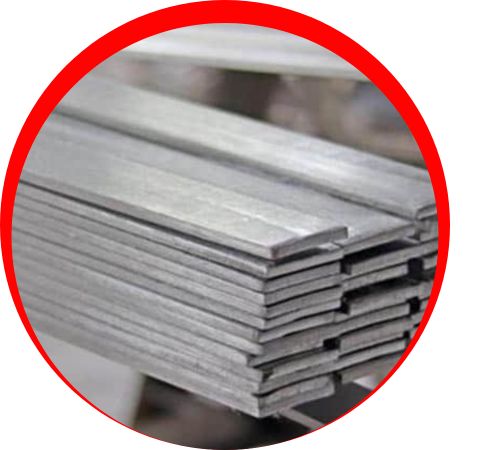

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Square bar size | 4 to 100mm |

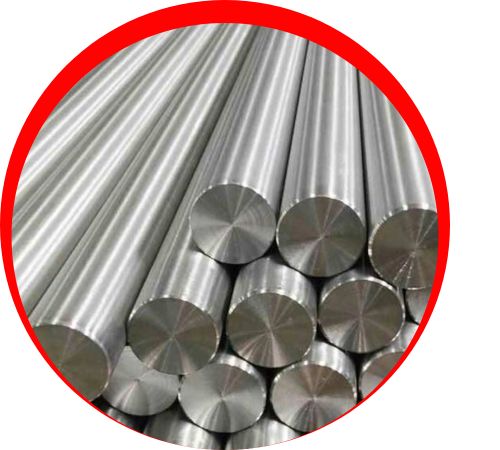

| Round bar size | Diameter: 3-~800mm |

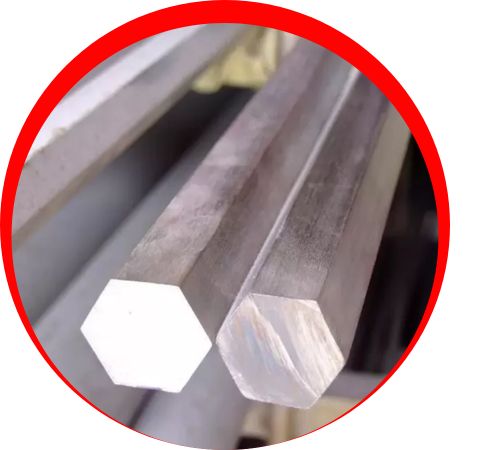

| Hex Bar size | 2-100mm A/F |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |

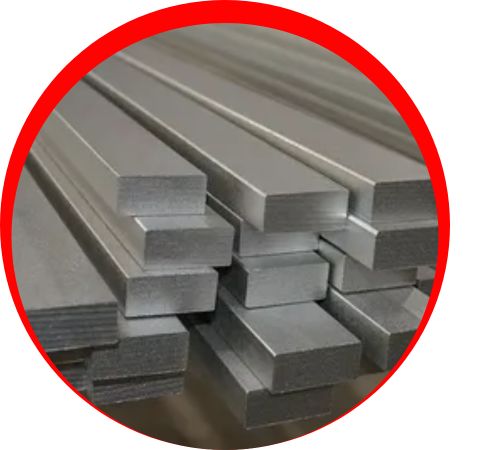

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Billet Size | 1/2″ to 495mm Diameter |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Condition | Hardened & tempered, annealed |
| Technique | 600 Inconel Cold Drawn, Hot Rolled, Forged Round Bar, Rod, Cold Rolled |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Cold Drawn, Bright, Sand Blasting Finished, Hot Rolled Pickled, Hairline, Polished |
| Processing | Bar cutting to 650mm |

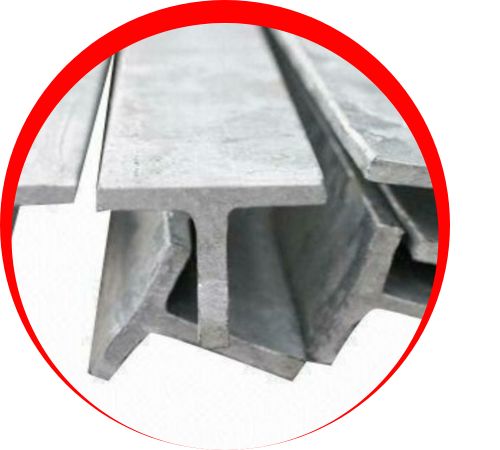

| Form | Precision Ground Bar, Flat Bar, Square, Round, Half Round Bar, Rod, Rectangle, Hex (A/F), T-Bar, Channel Bar, Blocks, Round Rod, Threaded, Profiles, Billet, Ingot, I/H Bar, Forging, Rings, Hollow, Triangle etc. |
| Grade | Ni | Cr | Fe | C | Mn | S | Si | Cu |
|---|---|---|---|---|---|---|---|---|
| Inconel 600 | 72.0 min | 14.0 – 17.0 | 6.0 – 10.0 | 0.15 max | 1.0 max | 0.015 max | 0.5 max | 0.5 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
|---|---|---|---|---|
| 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Inconel 600 Bars in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Inconel 600 bars from Elvis Nickel Alloys are widely used in nuclear reactors, heat treatment fixtures, marine hardware, chemical processing equipment, and aerospace structural components. These bars perform exceptionally well in high-temperature oxidising conditions, alkaline solutions, and environments containing chlorides. They are utilised in turbine components and superheater supports in power plants, and their resistance to sanitary chemicals makes them valuable in the food and pharmaceutical sectors. Because of its adaptability and resilience to stress, Inconel 600 is a material of choice for parts in mission-critical systems that are subjected to mechanical fatigue, aggressive fluids, and thermal cycling.
