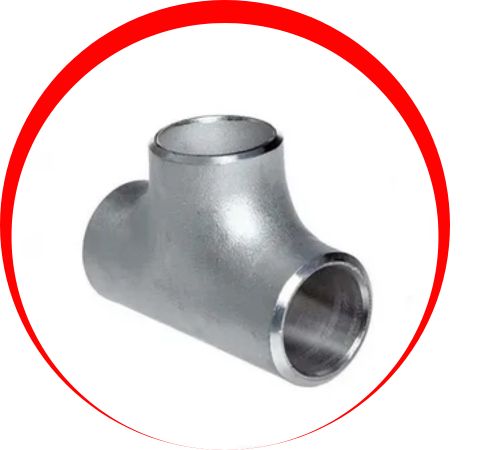

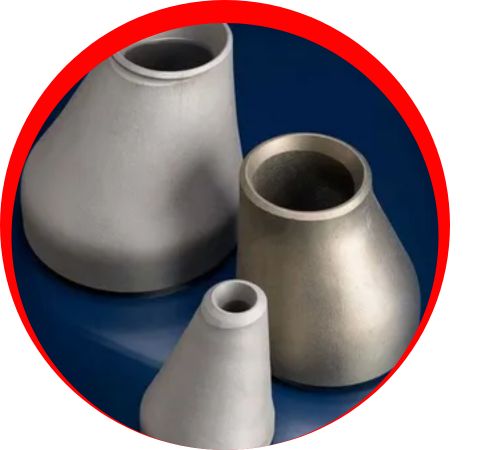

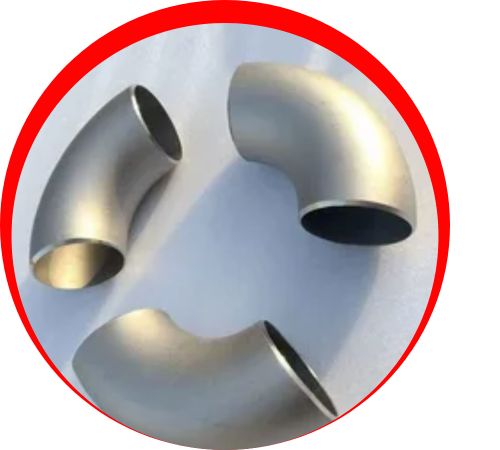

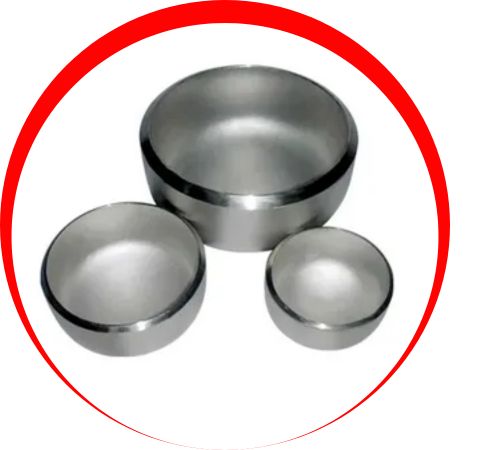

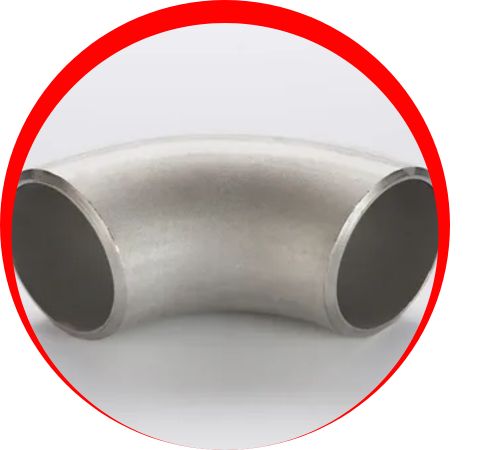

For industrial customers in Dubai, United Arab Emirates, Elvis Nickel Alloys, a reputable manufacturer and exporter with headquarters in Houston, USA, provides an extensive selection of Incoloy Pipe Fittings. The corrosion-resistant nickel-iron-chromium alloys used to make these high-performance fittings, including Incoloy 800, 800H, 800HT, and 825, are made to withstand harsh chemical environments and high temperatures. Elvis Nickel Alloys manufactures elbows, tees, reducers, caps, and customised fittings that guarantee safe and leak-proof connections, all while adhering to standards such as ASTM B366. In the United Arab Emirates, these fittings are extensively utilised in industries like petrochemicals, power plants, offshore platforms, and chemical processing facilities.
A combination of nickel (30–46%), chromium (19–23%), and iron (balance) make up Incoloy Pipe Fittings from Elvis Nickel Alloys. Certain grades also include molybdenum, copper, titanium, and aluminium. Excellent resistance to oxidation, pitting, stress corrosion, and cracking is offered by these elements. Depending on the grade, the fittings normally have a tensile strength of 500–700 MPa, a yield strength of 200–450 MPa, and an elongation of up to 45%. Heat exchangers and chemical reactors are examples of harsh service environments where Incoloy fittings provide long-term durability by maintaining strength and integrity in high-temperature applications.
Specifications : ASTM B366 / ASME SB366
Size : Seamless Inconel / Incoloy Butt Weld Fittings: 1/2″ – 10″
Welded Inconel / Incoloy Butt Weld Fittings: 1/2″ – 48″
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Thickness : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Types : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel Pipe Fittings | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel Pipe Fittings | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy Pipe Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Incoloy pipe fittings from Elvis Nickel Alloys are utilised in nuclear power systems, chemical processing facilities, oil and gas pipelines and marine engineering applications throughout Dubai and the United Arab Emirates. While the 800 series is best suited for high-temperature applications like steam superheaters, heat exchangers, and furnace components, the Incoloy 825 fittings are perfect for environments that contain sulphuric and phosphoric acids. In applications where mechanical strength, resistance to corrosion, and thermal stability are crucial, such as acid recovery systems, offshore oil platforms, and thermal processing lines, these fittings are indispensable. Under demanding and variable operating conditions, they offer secure connections.
