Varun Sheets and Plates is a well-respected manufacturer and supplier of top-notch Incoloy 825 Pipe Fittings, proudly based in Dubai, UAE. We’re recognized for providing corrosion-resistant and high-strength alloy fittings that serve critical industries like chemical processing, marine, oil & gas, and pollution control. Our Incoloy 825 pipe fittings are crafted under strict quality standards, ensuring they deliver outstanding durability, precise dimensions, and resistance to harsh environments. With a commitment to serving customers throughout the Middle East, Varun is your go-to source for reliable and long-lasting piping solutions that can handle demanding conditions.
Incoloy 825 is a nickel-iron-chromium alloy enriched with molybdenum, copper, and titanium, specifically engineered to withstand both oxidizing and reducing acids. These pipe fittings boast impressive mechanical properties, including a tensile strength of around 690 MPa, along with exceptional resistance to pitting, crevice corrosion, and stress corrosion cracking. The alloy remains stable even in tough chemical environments and at elevated temperatures, making it perfect for heavy-duty industrial applications.
Specifications : ASTM B366 / ASME SB366
Size : Seamless Inconel / Incoloy Butt Weld Fittings: 1/2″ – 10″
Welded Inconel / Incoloy Butt Weld Fittings: 1/2″ – 48″
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799
Thickness : SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
Types : Seamless / Welded / Fabricated
Bending Radius : R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Inconel Pipe Fittings | 0.15 max | 1.00 max | 0.50 max | 0.015max | 0.50 max | 6.00 – 10.00 | 72.00 min | 14.00 – 17.00 | – | – |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Inconel Pipe Fittings | 8.47 g/cm3 | 1413 °C (2580 °F) | Psi – 95,000 , MPa – 655 | Psi – 45,000 , MPa – 310 | 40 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Incoloy 825 Pipe Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.

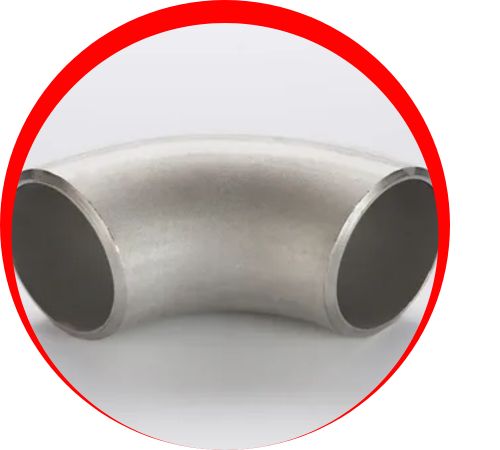

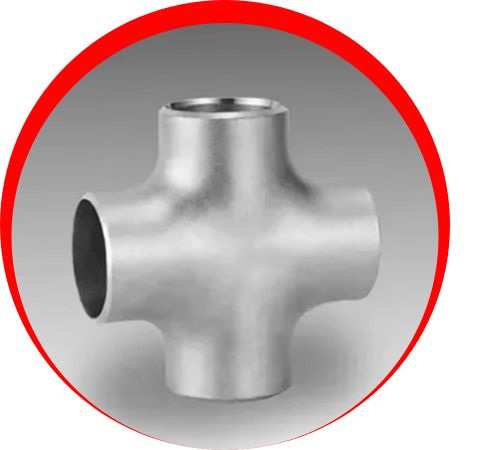

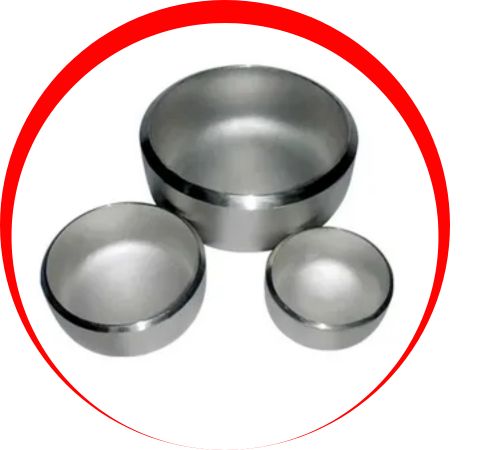

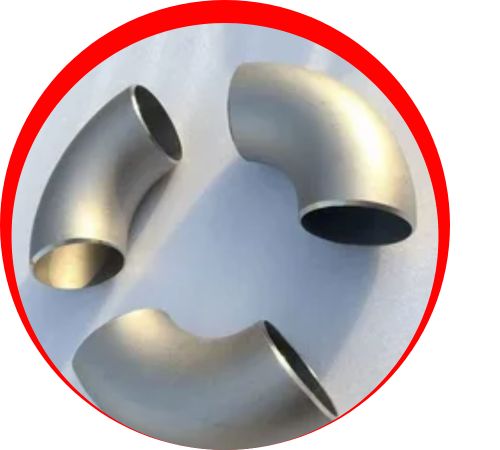

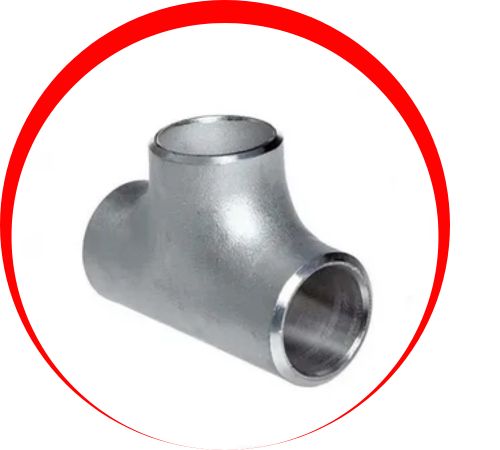

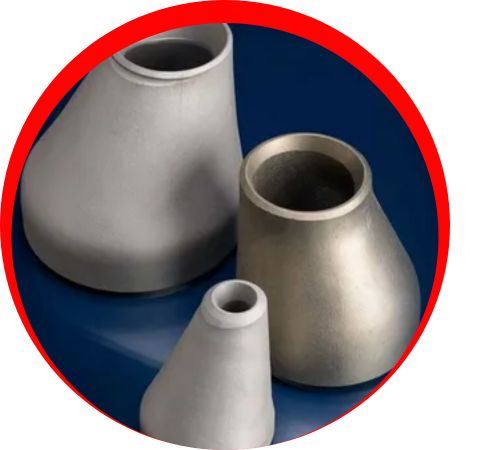

You’ll find Incoloy 825 Pipe Fittings commonly used in chemical reactors, heat exchangers, offshore platforms, nuclear fuel reprocessing, and flue gas scrubbers. We offer a range of types, including elbows, tees, reducers, caps, and stub ends, all designed to ensure secure and leak-free connections in high-pressure and corrosive systems. These fittings are particularly valuable for applications involving sulfuric and phosphoric acid service. Varun provides Incoloy 825 pipe fittings in various sizes, schedules, and specifications, guaranteeing consistent quality and performance for even the most complex piping installations.
