Elvis Nickel Alloys has built a solid reputation in the metal industry as a top-notch manufacturer and supplier of Incoloy 825 Forgings right here in Texas, USA. Located in Houston, we focus on providing high-quality forgings that cater to a wide range of industrial needs. Our dedication to quality and precision means that our Incoloy 825 forgings are made using cutting-edge techniques and adhere to international standards. We pride ourselves on timely deliveries, competitive pricing, and outstanding customer service, which is why clients from various sectors choose us. With our deep expertise in nickel-based alloys, we deliver durable and corrosion-resistant components that are essential for critical applications.
| Specifications | ASTM B564, ASME SB564 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |

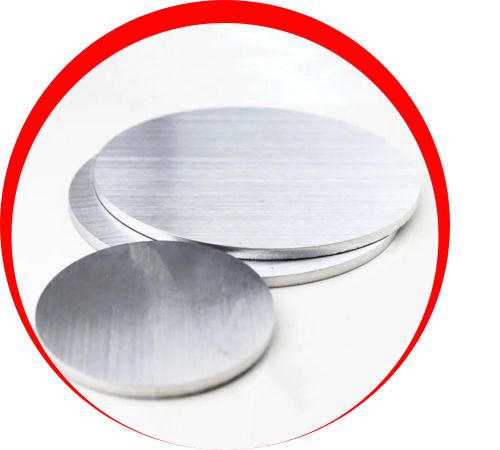

| Discs and hubs | up to 50″ diameter and 20,000 lbs |

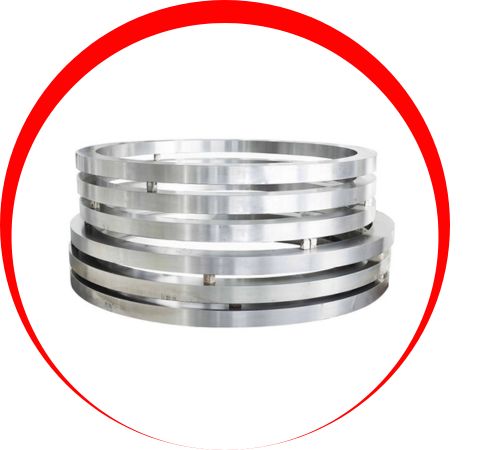

| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |

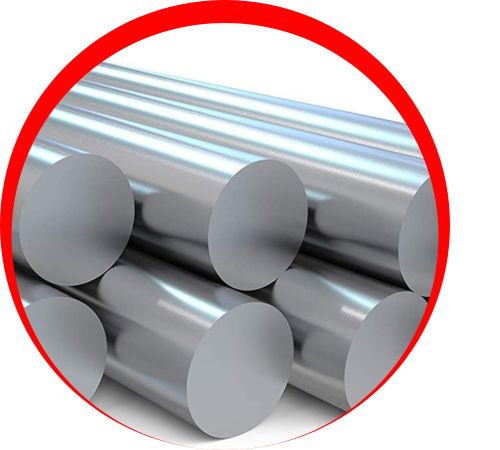

| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | C | Mn | Si | S | Cu | Fe | Ni | Cr | Al | Ti |
| Incoloy 825 | 0.05 max | 1.00 max | 0.5 max | 0.03 max | 1.50 – 3.00 | 22.00 min | 38.00 – 46.00 | 19.50 – 23.50 | 0.02 max | 0.06 – 1.20 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation | |
| Incoloy 825 | 8.14 g/cm3 | 1400 °C (2550 °F) | Psi – 80,000 , MPa – 550 | Psi – 32,000 , MPa – 220 | 30 % |
When it comes to Incoloy 825 Forgings, our products boast a composition that mainly includes nickel (38–46%), iron, chromium (19.5–23.5%), molybdenum (2.5–3.5%), copper (1.5–3%), and titanium (0.6–1.2%). This unique alloy offers remarkable corrosion resistance in both oxidizing and reducing environments. On the mechanical side, it provides a tensile strength of around 550 MPa, a yield strength of 220 MPa, and an elongation of about 30%, ensuring high strength and excellent ductility even under tough service conditions.
Contact us to get a quick quote for your requirement.
Our Incoloy 825 Forgings are widely used across industries that require both corrosion resistance and mechanical durability. You’ll find them in applications like chemical processing plants, pollution control systems, marine equipment, oil and gas extraction, and nuclear waste management. These forgings are perfect for components such as pumps, valves, heat exchangers, pressure vessels, and piping systems, especially in environments rich in acids and chlorides. Their impressive resistance to stress corrosion cracking and pitting makes them a dependable choice for critical operations in aggressive and high-temperature settings.
