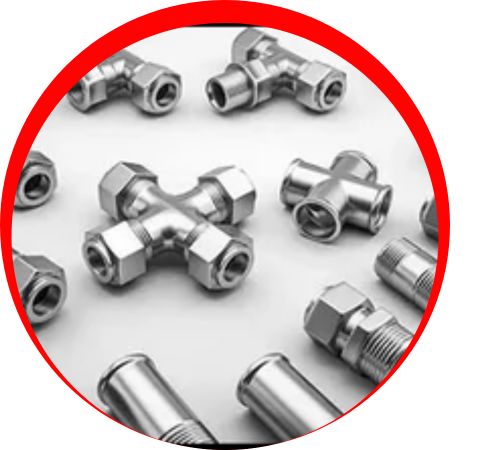

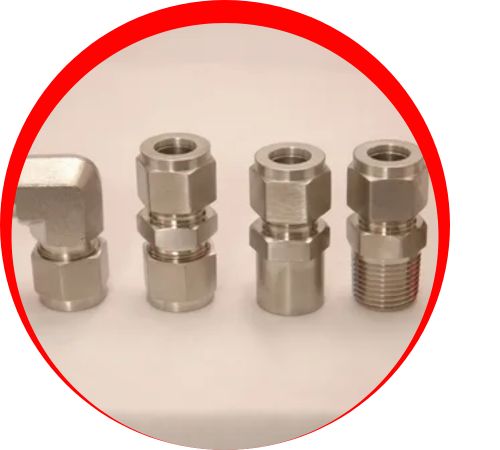

Elvis Nickel Alloys, a reputable manufacturer and supplier located in Houston, USA, specializes in high-performance Hastelloy C22 Tube Fittings designed for use in highly corrosive and chemically aggressive environments. Made from UNS N06022, these tube fittings offer exceptional resistance to both oxidizing and reducing agents, chlorides, and a variety of acidic substances. They come in different configurations, including male/female connectors, bulkhead unions, elbows, and tees, and meet international standards like ASTM B366 and ASME B16.11. Hastelloy C22 Tube Fittings guarantee leak-proof, high-integrity connections in critical systems across the chemical, marine, pharmaceutical, and waste treatment industries.
Hastelloy C22 Tube Fittings are made up of about 58% nickel, 20–22.5% chromium, 12.5–14.5% molybdenum, and 2.5–3.5% iron, along with some tungsten and cobalt. These fittings showcase impressive tensile strength (~690 MPa), yield strength (~283 MPa), and high elongation (~45%), ensuring robust mechanical performance. The alloy’s structure offers excellent resistance to pitting, crevice corrosion, and stress corrosion cracking, even in mixed acid or chloride-rich environments. Hastelloy C22 maintains its mechanical integrity across a wide range of temperatures, promising stable and long-lasting performance in tough conditions.
| Specifications | ASTM B366 ASME SB366 |
| Size | 6mm to 38mm to 1/4″ to 1 1/2″ |
| Thread | NPT, BSP, BSPT, UNF, ISO, SAE etc. |
| Brass | ASTM B16 ASTM B 453 |
| Grade | C | Mn | Si | S | Co | Ni | Cr | Fe | Mo | P |
| Hastelloy Tube C22 Fittings | 0.010 max | 1.00 max | 0.08 max | 0.03 max | 2.50 max | 50.99 min* | 14.50 – 16.50 | 4.00 – 7.00 | 15.00 – 17.00 | 0.04 max |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Hastelloy C22 Tube Fittings | 8.89 g/cm3 | 1370 °C (2500 °F) | Psi – 1,15,000 , MPa – 790 | Psi – 52,000 , MPa – 355 | 40 % |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Hastelloy C22 Tube Fittings in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Hastelloy C22 tube fittings are widely used in industries requiring robust corrosion resistance and high-temperature stability. Common applications include chemical processing, petrochemical industries, and marine environments. They are ideal for handling aggressive chemicals, such as acids and chlorides, and are frequently utilized in flue gas desulfurization systems, pulp and paper production, and power generation. Their reliability and durability make them suitable for critical applications where performance and longevity are essential.
