A leading producer and supplier of Copper Nickel 90/10 Bars, Elvis Nickel Alloys is based in Houston, Texas, and is well-known for its strength, resilience to corrosion, and durability. Our bars are designed to satisfy the exacting requirements of industrial, offshore, and marine applications. They are made from premium-grade copper-nickel alloy, which is composed of 90% copper and 10% nickel. Elvis Nickel Alloys produces premium bars in a range of sizes and shapes to meet the needs of individual customers through exacting manufacturing procedures and adherence to global standards. Our Copper Nickel 90/10 Bars ensure durability and dependability for important infrastructure projects by performing exceptionally well in challenging conditions.
90% copper and 10% nickel make up Copper Nickel 90/10 Bars, with trace amounts of iron and manganese added for strength and corrosion resistance. These bars offer a balance between strength and ductility, with tensile strengths typically ranging from 310 to 450 MPa and elongation up to 30%. Excellent resistance to biofouling, stress corrosion cracking, and seawater corrosion is provided by the 90/10 alloy. They are appropriate for use in high-pressure piping, marine environments, and structural elements subjected to corrosive conditions due to their stable mechanical and thermal characteristics.
| Dimensions | DIN, EN, ASTM, JIS, ASME, BS, AISI |
|---|---|

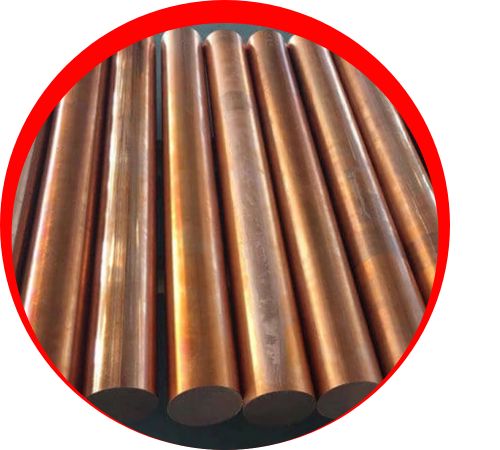

| Round bar size | Diameter: 3-~800mm |

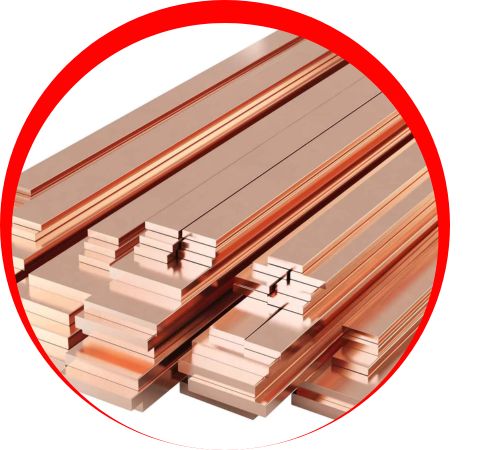

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |

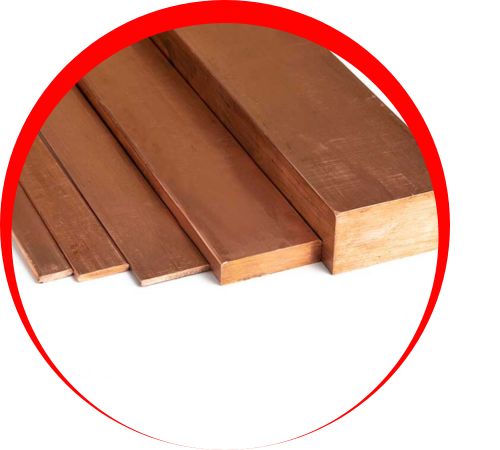

| Rectangular Bars Section | 3.0 to 12.0mm thickness |
| Billet Size | 1/2 to 495mm Diameter |
| Rectangles Size | 33 x 30mm to 295 x 1066mm |

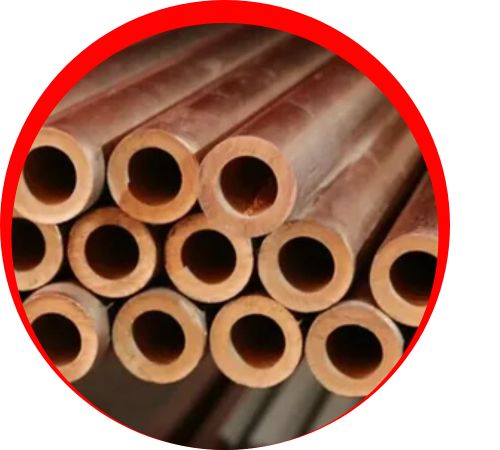

| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Dimensions | Diameter / Height: |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Surface | Hot Rolled Pickled, Bright, Sand Blasting Finished, Cold Drawn, Hairline,Polished |
| Condition | Hardened & tempered, annealed |
| Technique | Stainless Steel Cold Drawn, Hot Rolled, Forged Round Bar,Cold Rolled, Rod |
| Processing | Bar cutting to 650mm |
| Form | Rod, Round, Channel Bar, T-Bar, Flat Bar, Precision Ground Bar, Blocks, Square, Rings, Round Rod, Triangle, Hollow, Rectangle, Threaded, Hex (A/F), Profiles, Half Round Bar, Ingot, Billet, I/H Bar, Forging etc. |
| Grade | Element | |||||||
|---|---|---|---|---|---|---|---|---|
| Cu | 88.7 | |||||||
| Fe | 1.3 | |||||||
| Ni | 10.0 | |||||||
| Properties | Metric | Imperial |
|---|---|---|
| Tensile strength, ultimate | 303-414 MPa | 43900-60000 psi |
| Tensile strength, yield (depending on temper) | 110-393 MPa | 16000-57000 psi |
| Elongation at break (in 254 mm) | 42.00% | 42.00% |
| Machinability (UNS C36000 (free-cutting brass) = 100%) | 20% | 20% |
| Shear modulus | 52.0 GPa | 7540 ksi |
| Poisson’s ratio | 0.34 | 0.34 |
| Elastic modulus | 140 GPa | 20300 ksi |
At Elvis Nickel Alloys, we take pride in being the largest supplier, exporter, and manufacturer of Copper Nickel 90/10 Bars in Texas, USA, providing cutting-edge solutions for all your piping needs. Our state-of-the-art production plants are strategically located in the USA, allowing us to maintain a vast inventory of over 16,000 tons of premium-quality materials readily available in stock. We are dedicated to delivering superior products and services, ensuring reliability and excellence for our global clientele.
Contact us to get a quick quote for your requirement.
Elvis Nickel Alloys’ copper nickel 90/10 bars are used extensively in marine engineering, offshore platforms, and shipbuilding to create structural elements, fasteners, and shafts. They are perfect for applications exposed to seawater, such as pump shafts, valve stems, and couplings, because of their resistance to corrosion. These bars are also used in chemical processing facilities, desalination plants, and power generation plants, where strong, corrosion-resistant materials are crucial. The Copper Nickel 90/10 Bars from Elvis Nickel Alloys are a popular option for demanding industrial and marine applications because they guarantee long-lasting performance and structural integrity.
